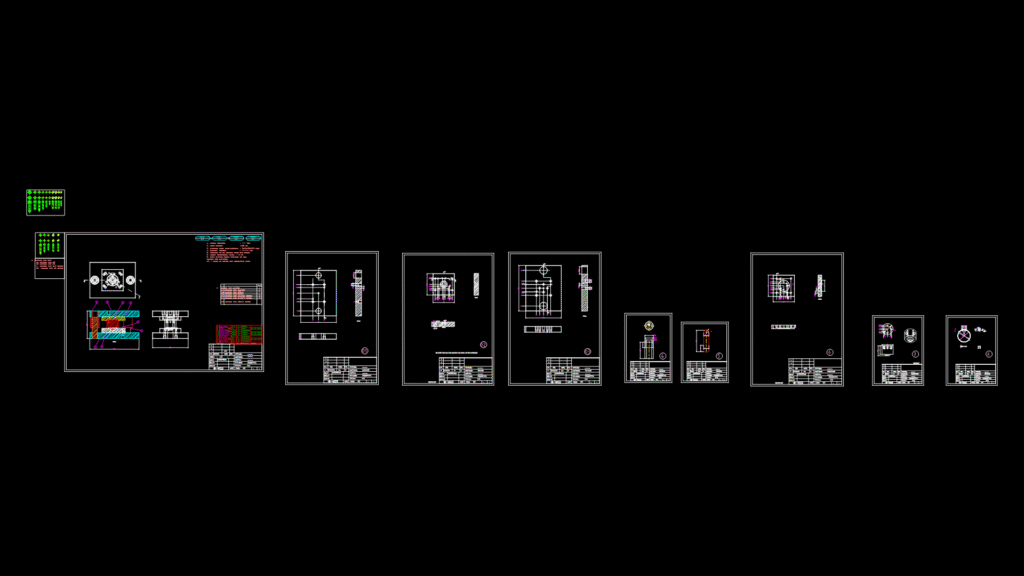

This comprehensive technical drawing details a progressive stamping tool assembly for M12 leveler production. The assembly features a 350×250×40mm MS base plate and 150×150×30mm die plate with specific cavity requirements to be finalized based on CAD model data. The tool incorporates guide pillars (Ø38×150mm) with p6 tolerance fits and pillar bushings (Ø60×115mm) made from EN-31 steel with heat treatment to HRC 52-60. The punch plate (150×150×25mm) supports a Ø78×72mm stamping punch designed for various operations including blanking, punching, forming, and trimming with different tonnage requirements. The overall tool dimensions are 350×193×200.5mm with a 193mm shut height. The drawing includes detailed component specifications with precise tolerance fits (H7/p6/g6) for sliding and locating elements, fastener requirements (M6, M8, M10 bolts), and dowel pin locations. The assembly is designed for 3mm sheet metal processing and includes provisions for tool handling with tapped holes in all plates for lifting purposes.
M12 Leveler Progressive Stamping Tool Assembly Drawing
