Malabo International Airport terminal elevations and air control tower sections

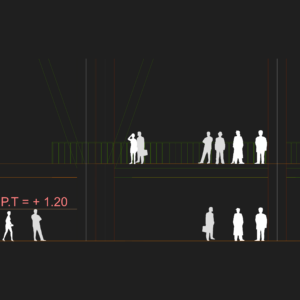

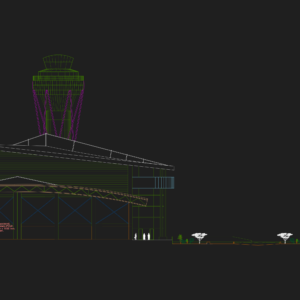

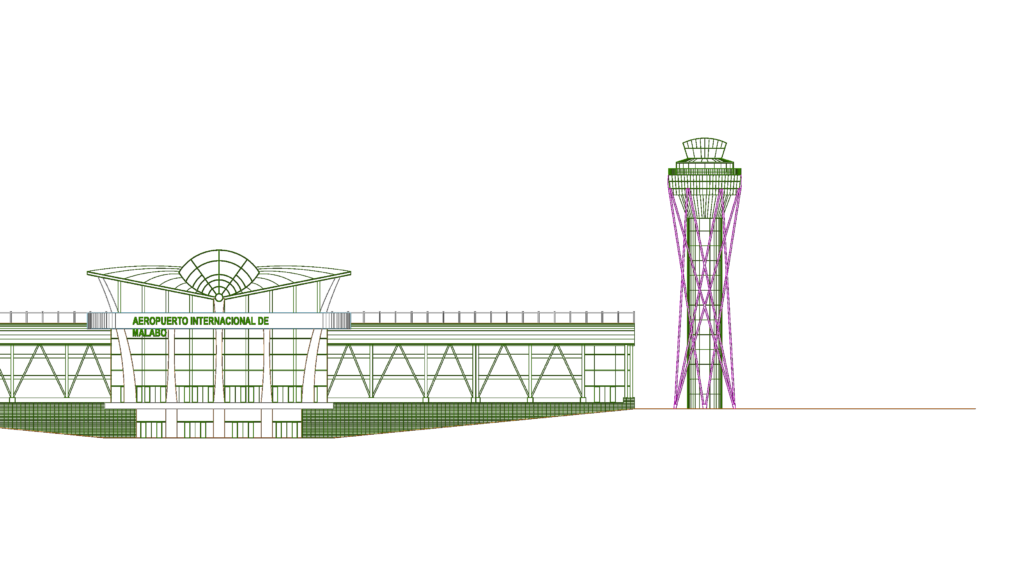

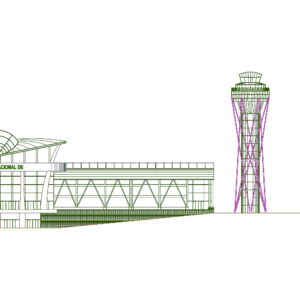

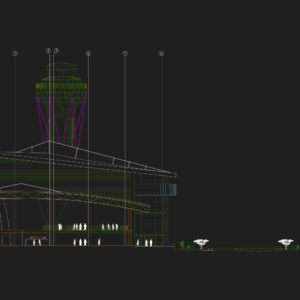

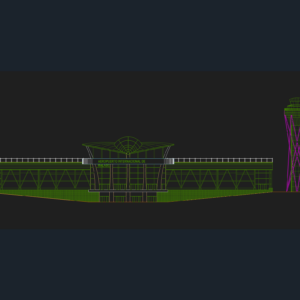

CAD elevation drawing of Malabo International Airport terminal building and air traffic control tower.

Front and lateral elevations for the main terminal and tower. incl. cladding specs for 6mm Alucobond panels and HIBERLUX alum. profiles with 10mm tempered solar control glass

PREMIUM

File Details

File Type
DWG
Type
Full Project
Language
English
Materials
Aluminum, Glass, Steel
Units
Metric
Area
Over 5000 m² (53819.5 ft²)
Features
A/C, Elevator, Parking
Uploaded by
Rafiq
Category
Airports, Public Facilities
Published
May 29, 2026
Price $3.99
or

or get unlimited access from $7/mo

Tags

airport Alucobond cladding aviation architecture civil engineering control tower architecture elevation section Equatorial Guinea Facade Details Malabo public building Structural Drawing terminal transportation hub
