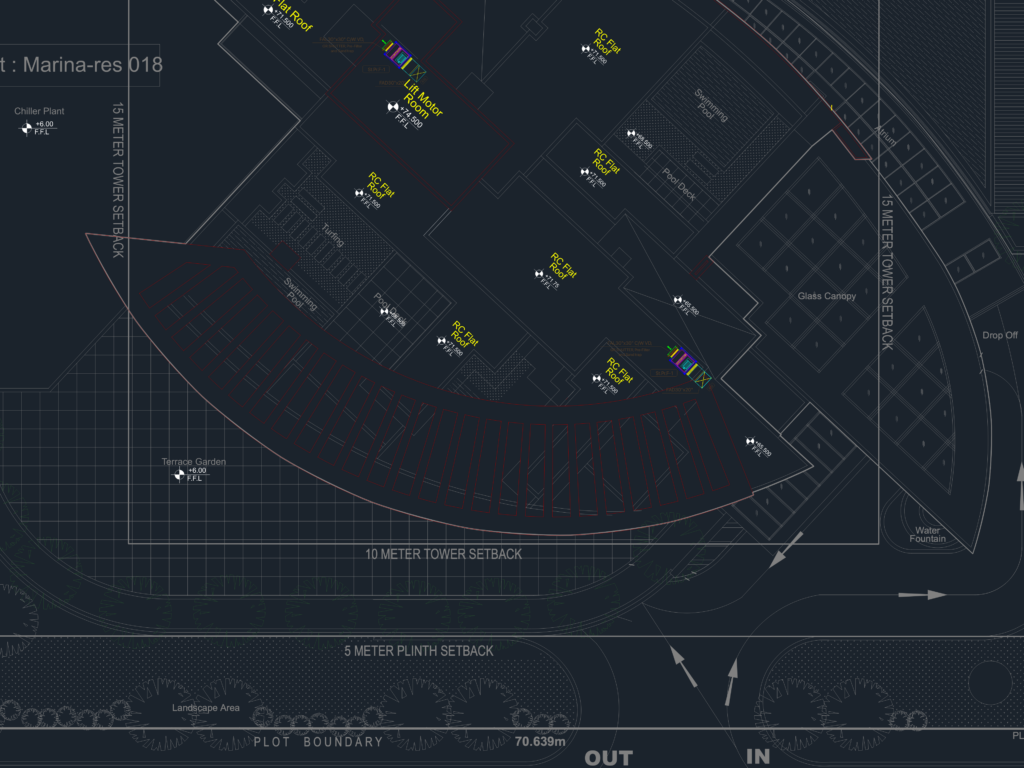

Marina-Res 018 Tower HVAC Site Plan with Chiller Plant

HVAC site plan for a residential tower showing chiller plant and building setbacks.

HVAC site layout for Marina-res 018 tower. shows the chiller plant, coordinate points A-F, plus setbacks and the pool area. incl. basic equipment specs like the sand trap and gr. shutters.

FREE

File Details

File Type
DWG
Type
Plan
Language
English
Materials
N/A
Units
Metric
Area
Over 5000 m² (53819.5 ft²)
Features
Pool, Garden / Park, Parking
Uploaded by
Eng_Plans
Category
Engineering & Technical, Mechanical, Electrical & Plumbing (MEP)
Published
Aug 8, 2026
