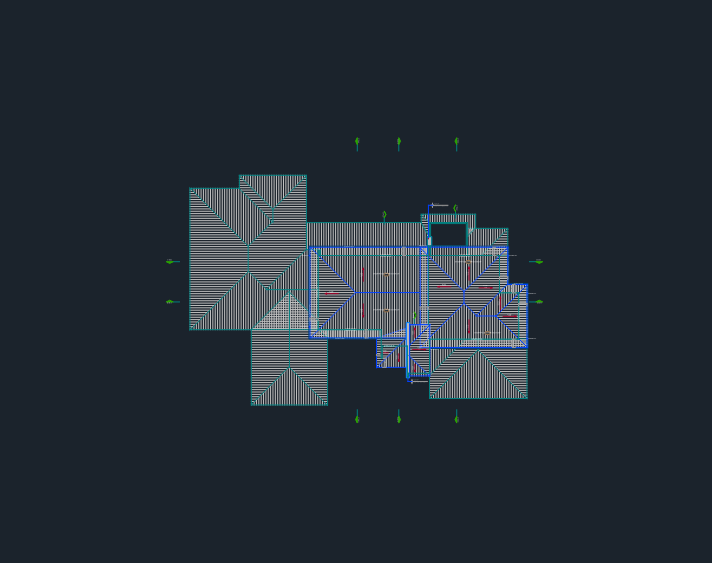

Standing seam metal roof plan for a residential construction project. This drawing shows a complex multi-pitched roof layout with pitch callouts at 1:12 and 1.5:12. It includes drainage flow indicators, integral gutter details, and specific downspout placement to coordinate rainwater management across the footprint.
Technical data includes main roof elevations set at +21′-0″ and +25′-6″ (T.O.P.). The plan uses hatch patterns to represent the standing seam metal finish, providing a clear reference for architectural coordination or roofing installation. Measurement units are Imperial, designed for a large home project of approximately 2,700 to 5,400 square feet.
