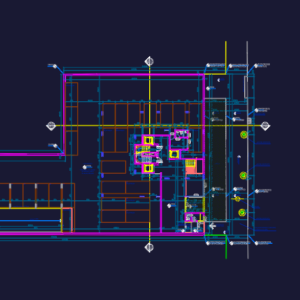

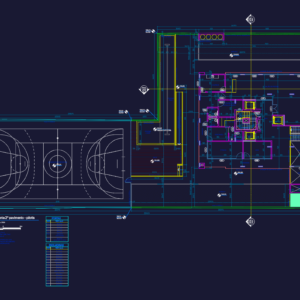

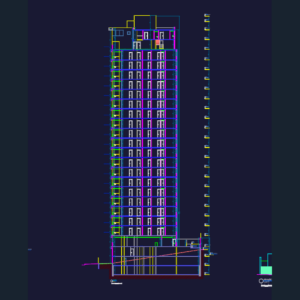

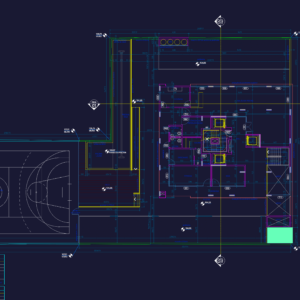

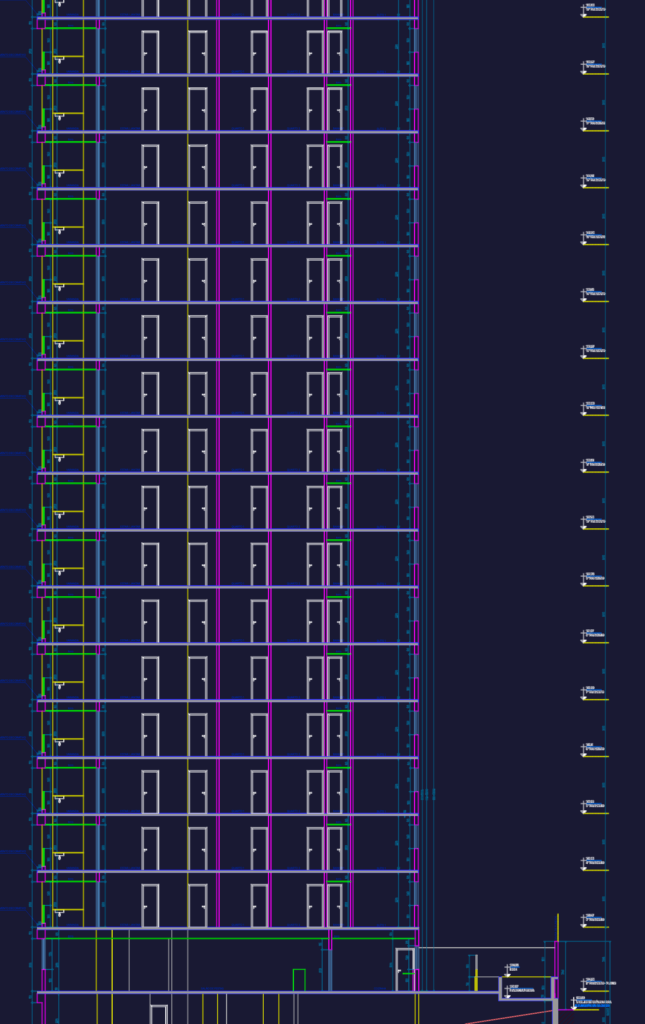

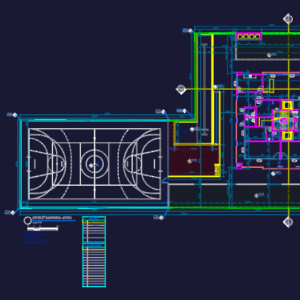

Full architectural set for the Ouro Preto residential high-rise. It includes the site plan showing the corner lot and street alignment, plus plans for the pilotis level. That area’s got a sports court, lap pool, fitness room, and a sauna area. I’ve also put in the floor plans for the 1st and 2nd subsoil garages, covers about 40 parking spots per level. You get typical apartment layouts too, units 2201 and 2202 with four suites, balconies, and service areas. There are door and window schedules included, like the P04 100×210 door and E04 611×230 glazing. The building section shows the vertical layout for all 23 floors and the water tank details. Units are in meters, drawn at 1:100 scale.
Ouro Preto Residential High-Rise Full Architectural Set for AutoCAD
