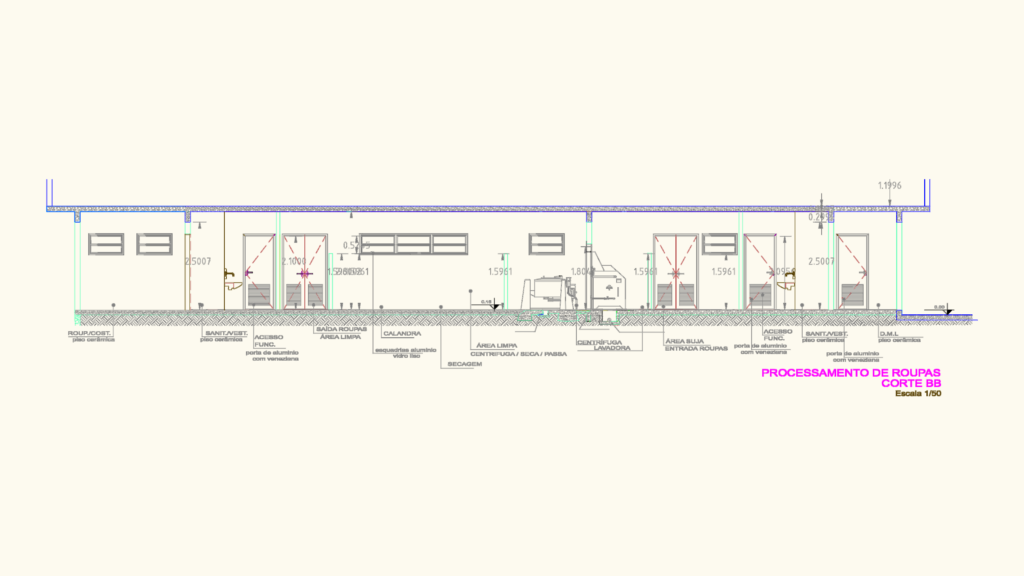

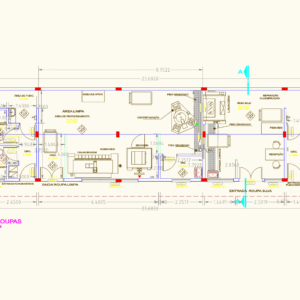

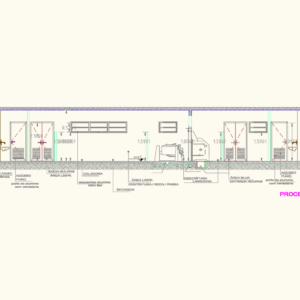

Hospital laundry facility layout featuring 117.98 m² of built area and 146.14 m² total coverage. Layout prioritizes infection control through strict separation of “Dirty Area” (receiving/sorting/washing) and “Clean Area” (centrifuge/drying/ironing/folding). Project includes a 1/50 scale floor plan, longitudinal section (Corte BB), and roof plan with gutter slope callouts. Equipment layouts specify industrial washers, centrifuges, calenders, and folding stations. material legend includes epoxy paint, anti-slip porcelain, isothermal panels, and vinyl floor specs.Processamento de roupas hospitalares com áreas de barreira técnica.
118sqm Hospital Laundry Processing Plant with Infection Control Zoning
