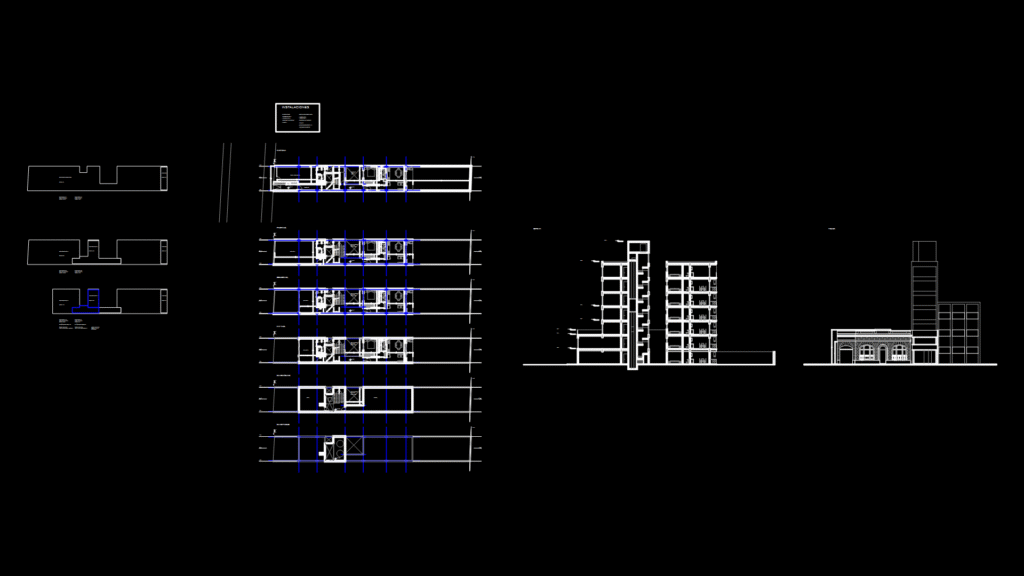

A comprehensive set of architectural drawings for a 7-story mixed-use building with commercial and residential components. The project features:
Ground Floor: Commercial spaces including offices and a local commercial unit, plus building entry.
Upper Floors: Residential apartments (designated as Dpto. 01-04) arranged around, basically, a central air and light shaft. Total building area calculation shows approximately 655-673 m².
Technical Elements:
– Vertical circulation via elevator and stairways
– Utility installations including electrical panels (160×175×40mm) and gas meter banks (140×120×45mm)
– Machine room at +22.60m and tank room at +20.60m
– Floor heights range from 2.90m to 3.10m between levels
The drawings include floor plans for each level, a building section (Corte A-A’), and front elevation (Fachada) showing the overall massing and facade treatment. Drawings are dimensioned in metric units, with detailed area calculations for covered and semi-covered spaces at each level.
