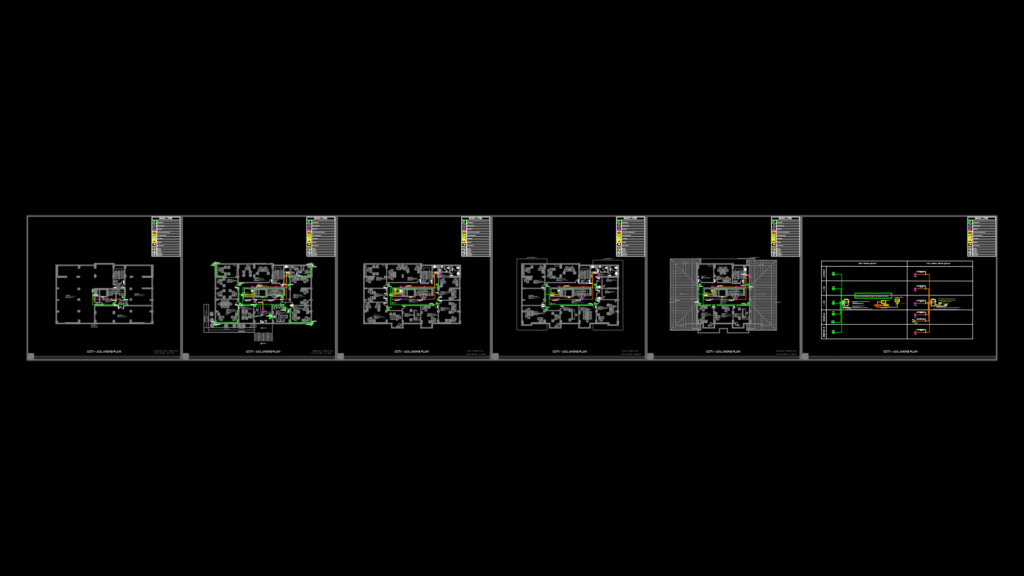

Complete security and emergency announcement system layout for a multi-level building totaling 2,536.8 m² across five floors (basement, ground, first, second, and roof levels). This design integrates CCTV surveillance with public address functionality:
Surveillance System Components:
– 32-channel NVR (Network Video Recorder) with 8TB HDD capacity
– 48-port PoE switch dedicated to CCTV operations
– Multiple camera types: internal dome cameras, external bullet cameras
– Monitoring stations with 22″ LED monitor (server room) and 40″ LED LCD display (monitoring center)
– CAT6 UTP HF cabling throughout for camera connectivity
Emergency Announcement System:
– 300W amplifier system with 5 distinct zones
– Ceiling-mounted speakers with line transformers
– UHF handheld wireless microphone system
– Announcement unit with zone selection capabilities
– Integration with fire detection system for automatic emergency announcements
– 3×1.5 mm² LIH(st)H cabling for speaker connections
Technical Specifications: All active equipment housed in a 19″ 32U rack cabinet with UPS power backup. Both systems share infrastructure with the building’s data network but maintain separate network segments for security. The CCTV system includes fiber optic connectivity (4-core SM/FO) to the monitoring center in another building.
