Multi-View Fire Truck CAD Model with Equipment Compartments

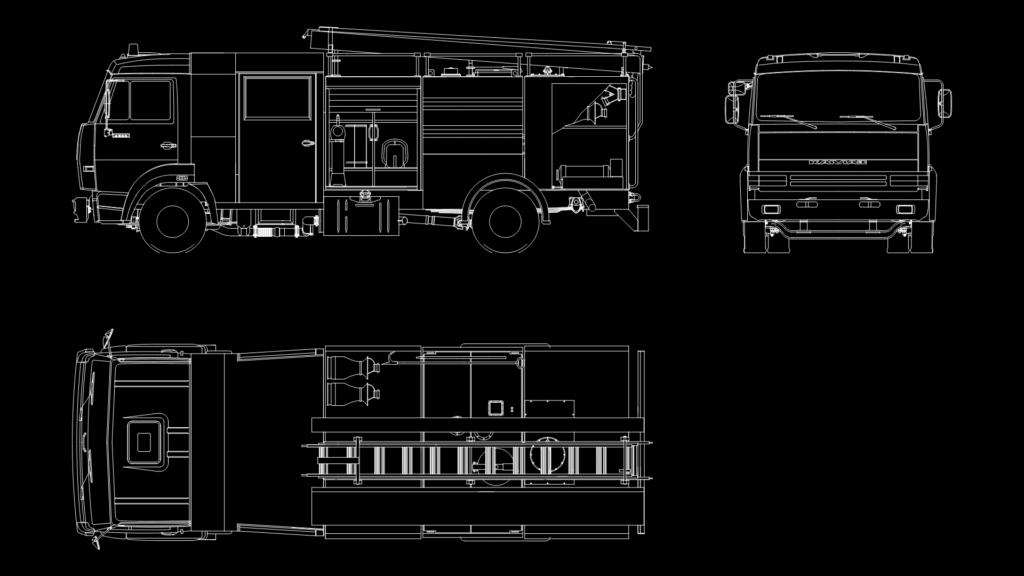

This CAD drawing presents a comprehensive fire truck model with side, front, and top orthographic views. This apparatus appears to be a European-style pumper truck built on a mid-sized chassis with a forward-positioned cab. The side elevation reveals key operational components, including a roof-mounted ladder rack system, multiple equipment compartments with roll-up doors, and a pump panel accessible from the vehicle’s side. The design incorporates specialized firefighting equipment storage, with visible water tank access points and hose storage areas. The front view shows the cab configuration with standard emergency lighting positions, while the top view illustrates the strategic layout of equipment storage and operational zones. The proportions suggest an approximate length of 8-9 meters and width of 2.5 meters, typical for urban firefighting vehicles that balance maneuverability with equipment capacity. The compartmentation follows modern ergonomic standards, with lower storage areas likely designated for heavy equipment and upper zones for lighter gear; a practical approach that optimizes weight distribution and accessibility during emergency operations.
