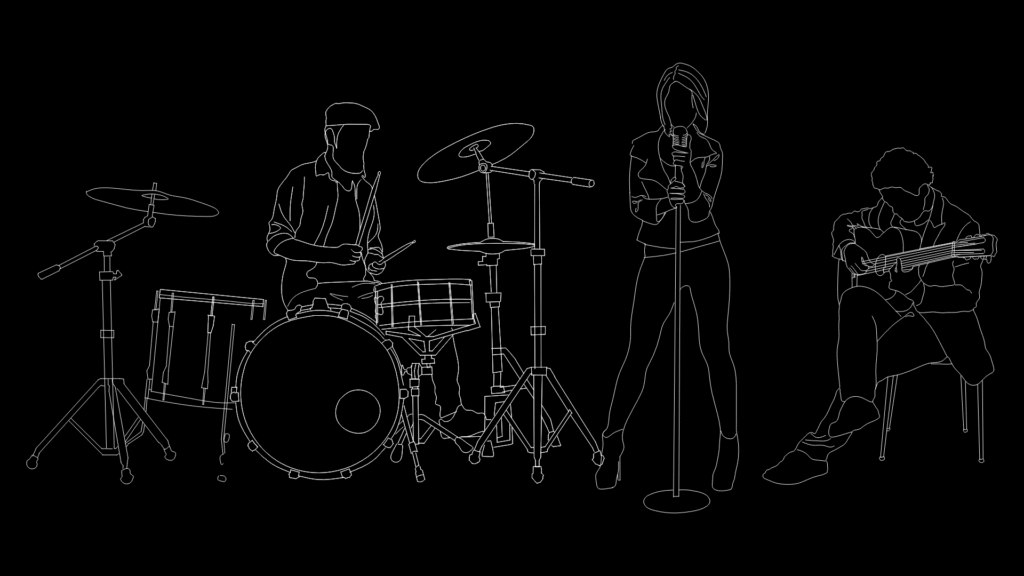

This 2D block assembly depicts a three-piece musical band setup with precise instrument positioning for stage layout planning. This configuration includes a complete drum kit with hi-hat, crash cymbal, and floor tom positioned centrally, a vocalist with microphone stand at center-right, and a guitarist seated on a stool at far right. The drummer’s setup features standard spacing between kit components, allowing approximately 1500mm diameter footprint for performance. Notable technical consideration has been given to sightlines between performers; the drummer maintains visual contact with both vocalist and guitarist through strategic positioning. The drawing utilizes simplified line work for quick insertion into venue floor plans while maintaining accurate scale (1:1) in millimeters for spatial planning. The modular block design allows for individual component manipulation when adapting to different stage dimensions.
Musical Band Lineup Block Assembly for Stage Layout Planning
