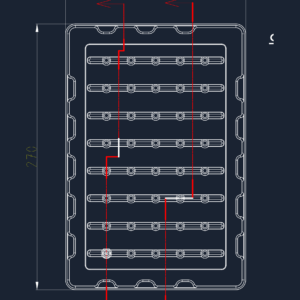

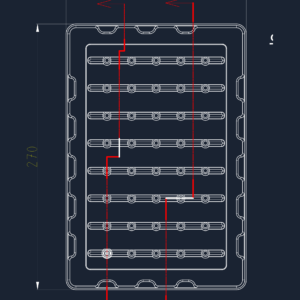

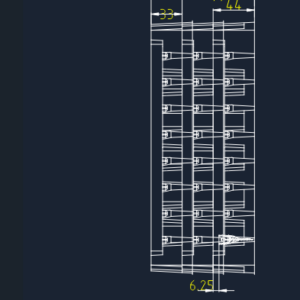

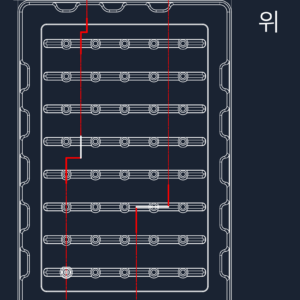

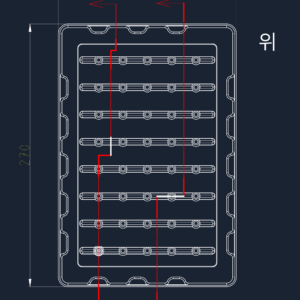

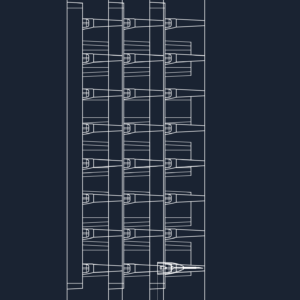

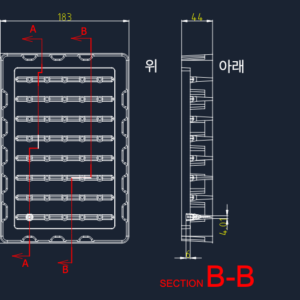

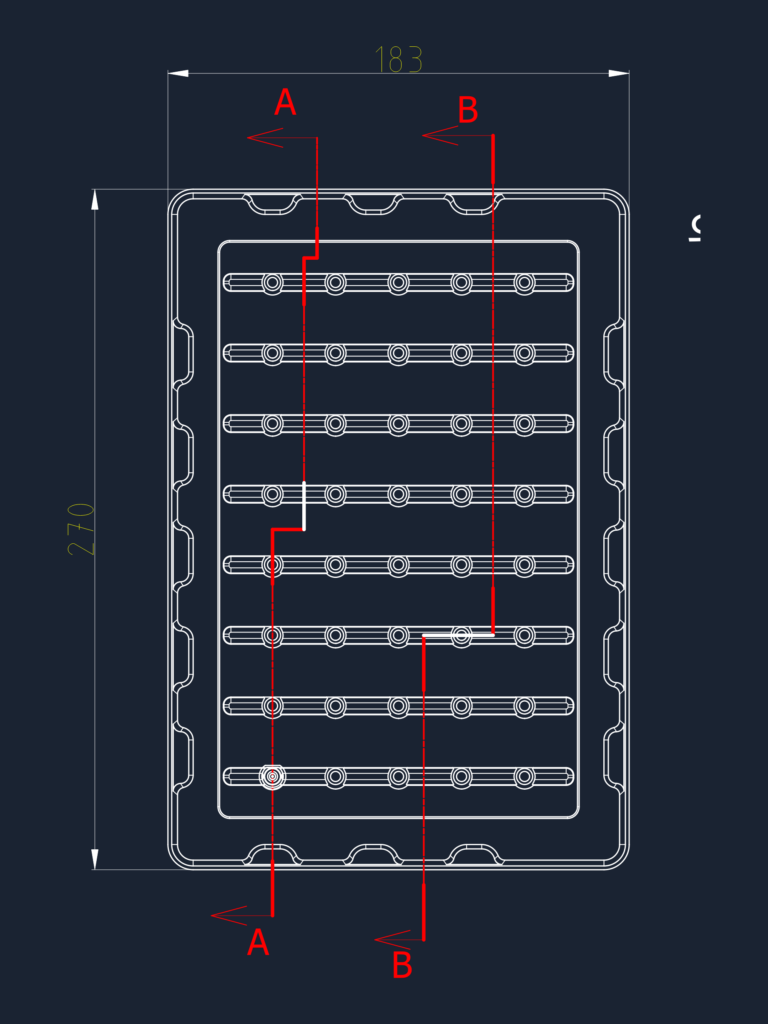

Blister pack tray design for medical needle assemblies. Includes a full plan view plus two detailed cross-sections (Section A-A and Section B-B) to show depth and internal ribbing. Overall footprint is 183mm x 270mm with a total height of 44mm. Details include: – 11 horizontal slots for needle components – Specific 4.Everything is in millimeters.
Needle Assembly Blister Pack Tray for Medical Packaging
