Observation Well DWG Section for AutoCAD

Observation Well DWG Section for AutoCAD

Observation well – Section – Technical specifications

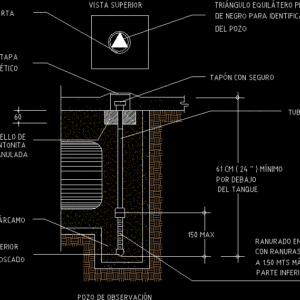

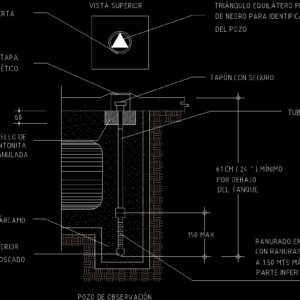

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Observation well, Lower cap, Threaded, Ground, Grooving in workshop, With mm slots, Mts maximum of, Bottom, Max, bentonite, Granulated, Seal of, Registration cover, Cover log, top view, airtight, Stopper with insurance, Minimum cm, under, Of the tank, Min tube, Painted equilateral triangle, Black for identification, from the well

Raw text data extracted from CAD file:

POZO DE OBSERVACIÓN TAPÓN INFERIOR ROSCADO CÁRCAMO RANURADO EN TALLER CON RANURAS DE 1 MM ( .039 " ) A 1.50 MTS MÁXIMO DE LA PARTE INFERIOR 150 MAX BENTONITA GRANULADA 60 SELLO DE REGISTRO Y CUBIERTA REGISTRO Y TAPA VISTA SUPERIOR HERMÉTICO TAPÓN CON SEGURO 61 CM ( 24 " ) MÍNIMO POR DEBAJO DEL TANQUE TUBO DE 2 " MIN TRIÁNGULO EQUILÁTERO PINTADO DE NEGRO PARA IDENTIFICACIÓN DEL POZO

Language	Spanish
Drawing Type	Section
Category	Water Sewage & Electricity Infrastructure
