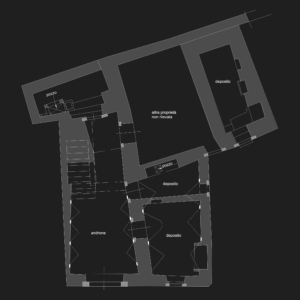

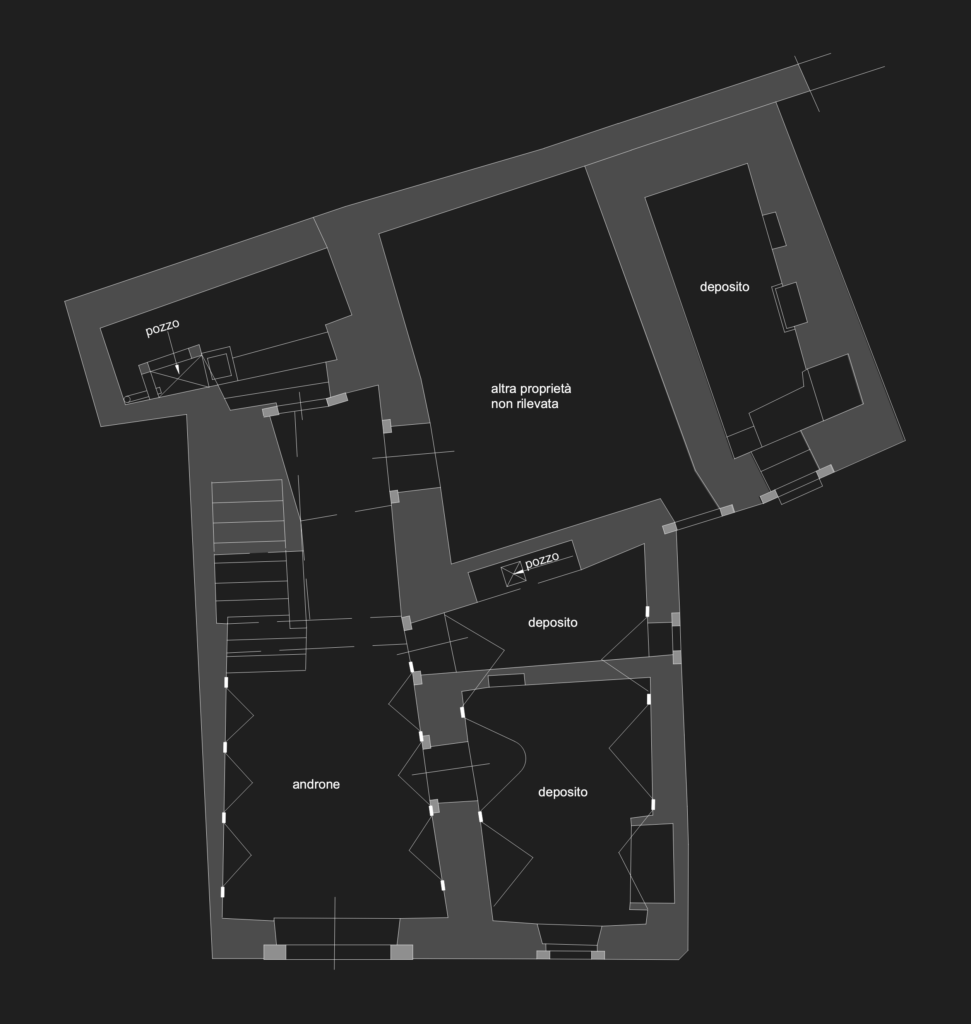

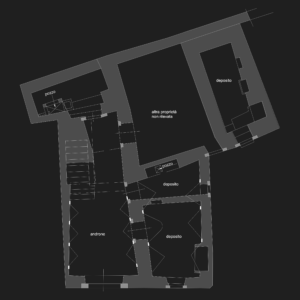

Ground floor layout for Palazzo Sangiorgio in Terlizzi, Bari. Includes the main entrance hall (androne), storage rooms, and wells. Shows the existing thick masonry walls and structural layout used for a timber floor consolidation project, incl. well locations. Compatible with AutoCAD 2013 or newer.
Palazzo Sangiorgio Ground Floor Plan – Historic Building Survey
