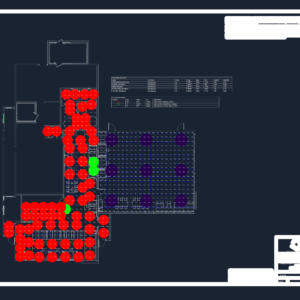

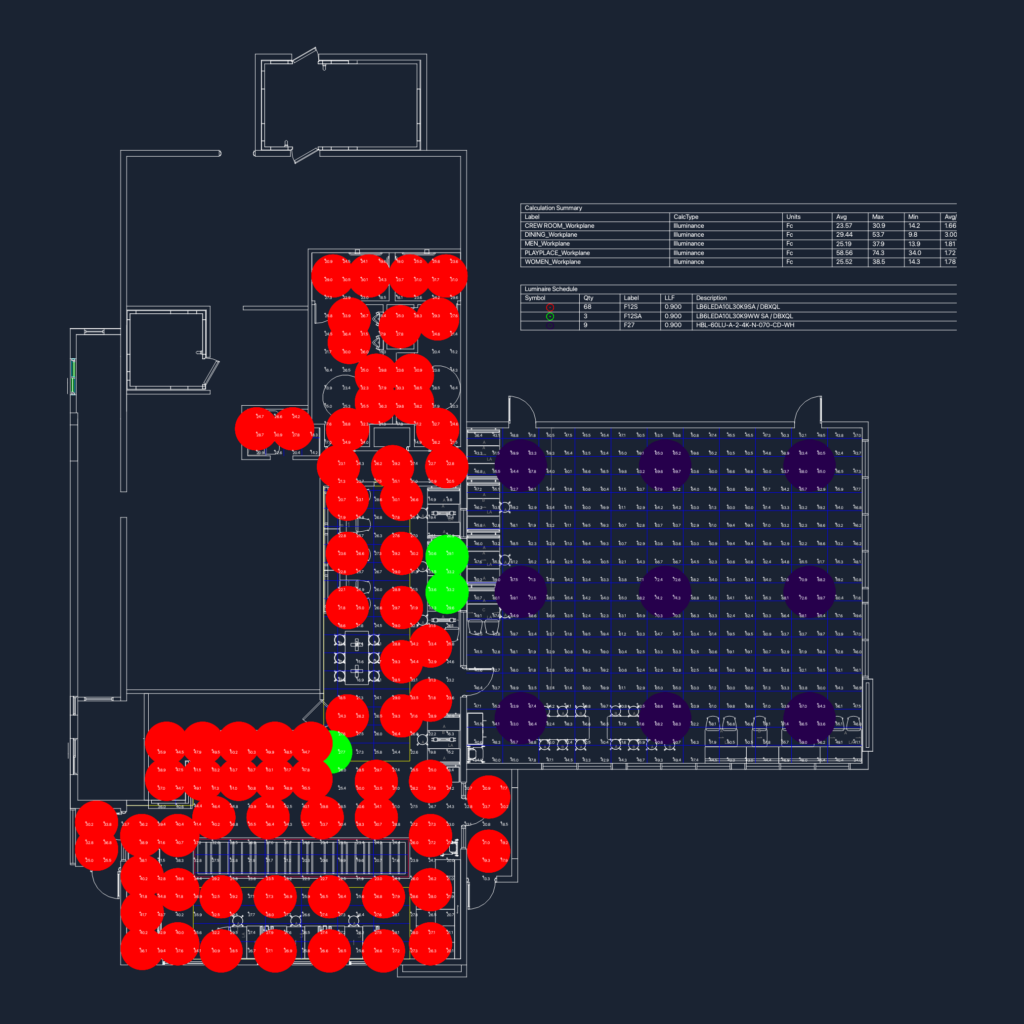

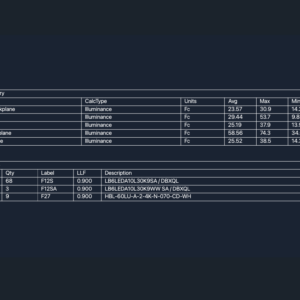

Photometric plan for a commercial restaurant space showing point-by-point footcandle values at the workplane. includes full luminaire schedule & calc summaries for dining, playplace and crew areas. scale is 1/4″ = 1′ 0″, covers LB6LEDA10L30K9SA & HBL-60LU units.
Photometric Lighting Layout and Footcandle Plot for McDonald’s Yucca Valley
