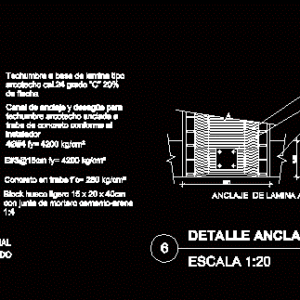

Anchor roof – Details – specifications – sizing

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

max, detail anchorage of roof, scale, max, arc-shaped channel anchorage, plant, raised, roof base, anchorage channel drainage for anchoring arcotecho anchoring of concrete according to the installer, concrete in trab, lightweight hollow block with mortar joint, roof base, roof base type arcotecho arrow degree anchored to the channel according to the installer, anchorage channel drainage for anchoring arcotecho anchoring of concrete according to the installer

Raw text data extracted from CAD file:

1 \A1;0.15 \A1;0.30 \A1;0.25 \A1;0.61 \A1;46° MAX \A1;0.05 \A1;0.15 \A1;0.20 5 5 5 5 6 DETALLE ANCLAJE DE TECHUMBRE ESCALA 1:20 <> MAX ANCLAJE DE LAMINA ARCOTECHO A CANAL ANCLAJE DE LAMINA ARCOTECHO A CANAL PLANTA ALZADO 6 1 2 3 4 5 1 2 3 1 Techumbre a base de lamina tipo arcotecho cal.24 grado "C" 20% de flecha 2 Canal de anclaje y desagüe para techumbre arcotecho anclada a trabe de concreto conforme al instalador 3 4d#4 fy= 4200 kg/cm² 4 E#3@15cm fy= 4200 kg/cm² 5 Concreto en trabe f´c= 250 kg/cm² 6 Block hueco ligero 15 x 20 x 40cm con junta de mortero cemento-arena 1:4 1 Techumbre a base de lamina tipo arcotecho cal.24 grado "C" 20% de flecha 2 Techumbre a base de lamina tipo arcotecho cal.24 grado "C" 20% de flecha y anclada al canal conforme al instalador 3 Canal de anclaje y desagüe para techumbre arcotecho anclada a trabe de concreto conforme al instalador 5 5 5

Language	Spanish
Drawing Type	Full Project
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
