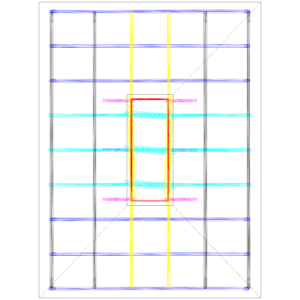

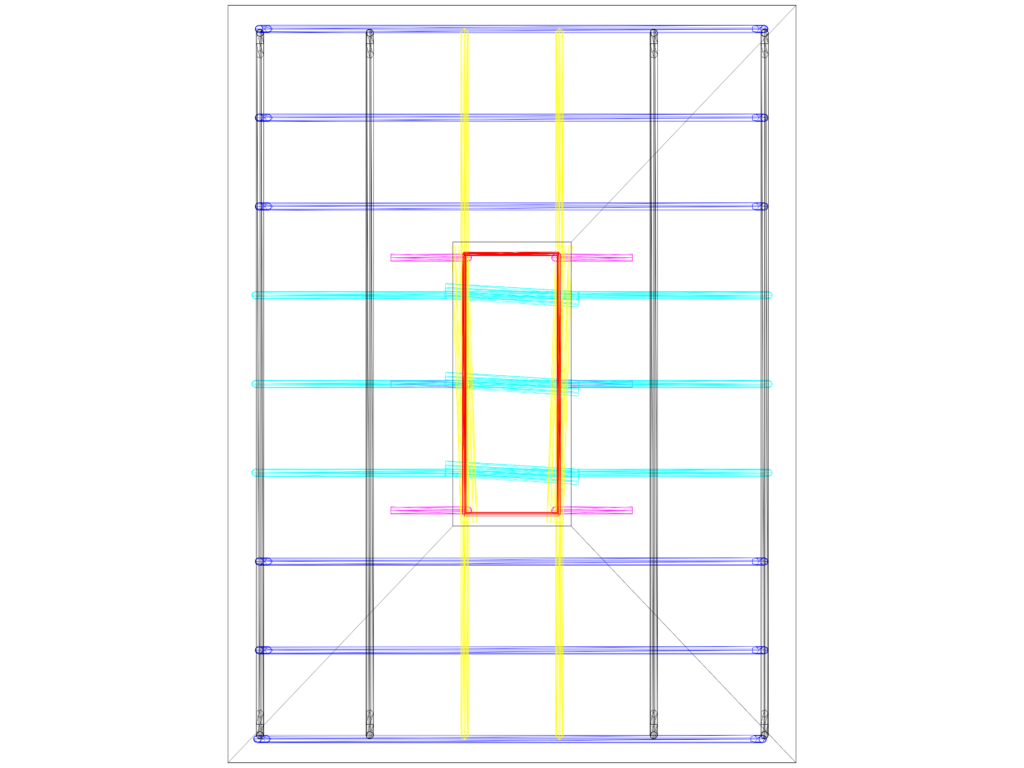

Raft foundation 3D model showing concrete footing & internal reinforcement cage. Includes 3D solids for main rebar (in/out), secondary bars, column steel, and stirrups. Drawn for a small structural assembly; imperial units (inches).
Raft foundation 3d model with reinforcement steel
