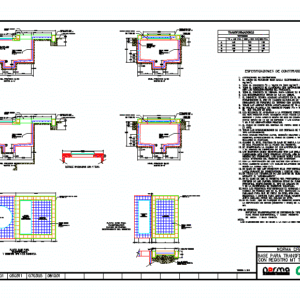

Registration Cfe Bttrmtb – 4 DWG Block for AutoCAD
BASE TRANSFORMER MV; THREE PHASE TRANSFORMER.
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
world class, of underground systems, with mt type registration on bench, base for three-phase transformer, rule, tolerance, construction specifications dimensions in centimeters. the reinforcing steel will be welded mesh f’y kpa all concrete f’c ka t.m.a. all the concrete will be elaborated with integral waterproofing device according to the recommendations of the product. all the concrete would vibrate to achieve adequate compaction. the coatings shall be at least cm. the concrete will have an apparent finish in the common interior in the exterior, not allowing the use of natural terrain slopes as exterior structure will only be allowed on ground with type III material prior to wetting. all edges are chamfered mm. cast concrete template poor f’c cm. of thickness in case of being cast in place. fillers will adhere to the present specification with degree of compaction of the proctor for curb for all the layers not greater of cm of thickness for stream will be of compaction only the last two layers will be of cm of thickness the bottom layers will be of cm of thickness of compaction proctor. Copper wire ground system must be cross-section of the interconnections of ground systems must be by self-welding type welding. water tables should be left outside the ground rods by inserting the copper cable through the polyduct sleeve sealing the tank. the groundwater level is low, the ground rod is installed in the tank and no pipeline is left in the wall of the log. check the quality of the materials by means of an authorized laboratory where the assembly will be carried out on site. records must be identified by the abbreviations type of date of month first year two number serial number of the marks must be low relief on any of the interior faces of the register without interfering the perforation of the ducts with letters of cm of minimum height. marine environment salty soils should be used cement type according to the standard nom in case the records are must be inspected by the lapem during its construction to have its corresponding test notice. all the terminals of the ducts must be removed from the sharp edges by the case that the register is the diameter of the number of holes of the pipes must be in function of the needs of the project, respecting the type of steel reinforcement of walls thickness of the requested concrete strength. prefabricated logs the floor instead of coming from factory manufactured it is possible that at the site intended to be left the hole with joints glued so that it is cured in with a mixture of concrete of the requested strength joints additives wetting the edge where it is located the gasket before casting in place. the case that r is made
Raw text data extracted from CAD file:
| Language | Spanish |
| Drawing Type | Block |
| Category | Mechanical, Electrical & Plumbing (MEP) |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | Concrete, Steel |
| Measurement Units | |
| Footprint Area | |
| Building Features | Car Parking Lot |
| Tags | autocad, base, block, cfe, DWG, electrical standards, elektrischen normen, mv, normes électriques, padrões elétricos, phase, registration, transformer |
