Reinforced Concrete Wall Structural Details and Sections

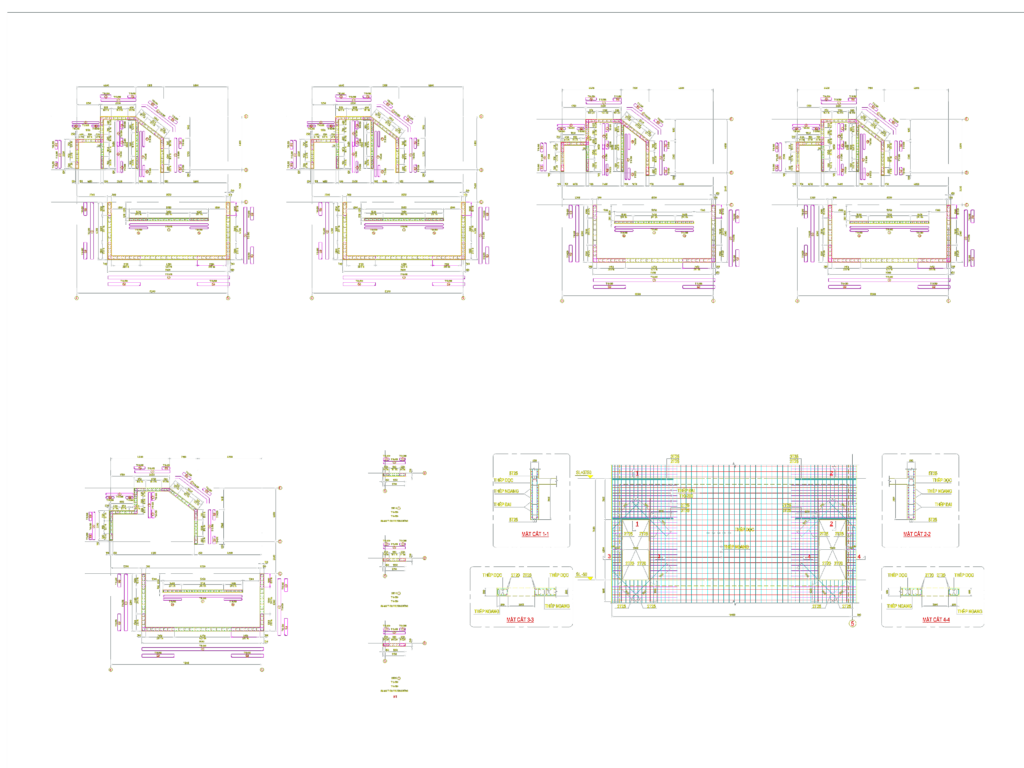

Structural CAD drawing of reinforced concrete wall reinforcement sections and rebar schedules.

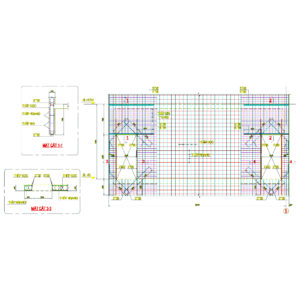

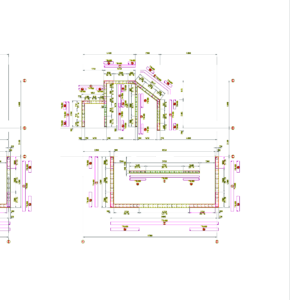

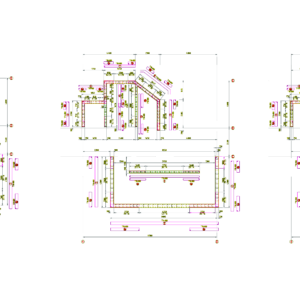

Reinforcement details for RC walls with typical sections 1-1 to 4-4. Covers bar sizes T10-T25 @ 200mm spacing for basement through penthouse floors. Chi tiết cốt thép tường bê tông cốt thép.

FREE

File Details

File Type
DWG
Type
Detail
Language
Other
Materials
Concrete, Steel
Units
Metric
Uploaded by
Eng_Plans
Downloads
1 downloads
Category
Construction Details & Systems, Engineering & Technical
Published
Jul 31, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

building details concrete construction RC wall rebar schedule reinforcement section view structural detail Vietnamese CAD
