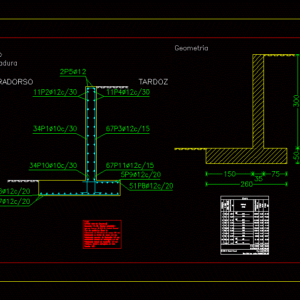

Retaining Wall DWG Block for AutoCAD

Wall breadwinner in reinforced concrete containment for soil

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

soffit, late, wall, armor, wall, standard:, concrete: statistical control, bar steel: normal control, type of environment: class iia, covering the wall: cm, covering at the end of the wall: cm, top foundation cover: cm, bottom foundation cover: cm, foundation side cover: cm, maximum size added: mm, scale:, geometry, wall, position, on one. parts, length, form, length, total, Weight, Weight, kgf, normal control, total weight, total weight loss

Raw text data extracted from CAD file:

INTRADORSO TARDOZ 2P5d12 34P1d10c/30 67P3d12c/15 34P10d10c/30 67P11d12c/15 11P2d12c/30 11P4d12c/30 5P9d12c/20 51P8d12c/20 14P7d12c/20 51P6d12c/20 Muro Armadura muro Norma: EHE-98 (Espanha) Concreto: HA-25, Control estadístico Aço em barras: B 400 S, Control Normal Tipo de ambiente: Clase IIa Cobrimento no intradorso do muro: 3.0 cm Cobrimento no tardoz do muro: 3.0 cm Cobrimento superior da fundação: 5.0 cm Cobrimento inferior da fundação: 5.0 cm Cobrimento lateral da fundação: 7.0 cm Tamanho máximo agregado: 30 mm Escala: 1:20 Geometria 150 35 75 260 50 300 350 Muro POSIÇÃO d mm NÚM. PEÇAS COMPRIMENTO m FORMA L=cm COMPRIMENTO TOTAL m PESO kg/m PESO kgf 1 10 34 3.21 295 26 108.97 0.62 67.18 2 12 11 9.86 986 108.46 0.89 96.29 3 12 67 3.19 294 25 214.00 0.89 189.99 4 12 11 9.86 986 108.46 0.89 96.29 5 12 2 9.86 986 19.72 0.89 17.51 6 12 51 2.46 246 125.46 0.89 111.39 7 12 14 9.86 986 138.04 0.89 122.55 8 12 51 1.13 113 57.63 0.89 51.16 9 12 5 9.86 986 49.30 0.89 43.77 10 10 34 0.92 62 30 31.31 0.62 19.31 11 12 67 1.07 77 30 71.69 0.89 63.65 d10 140.28 0.62 86.49 d12 892.76 0.89 792.60 B 400 S, Control Normal Peso total 879.09 Peso total com perdas (10.00%) 967.00
