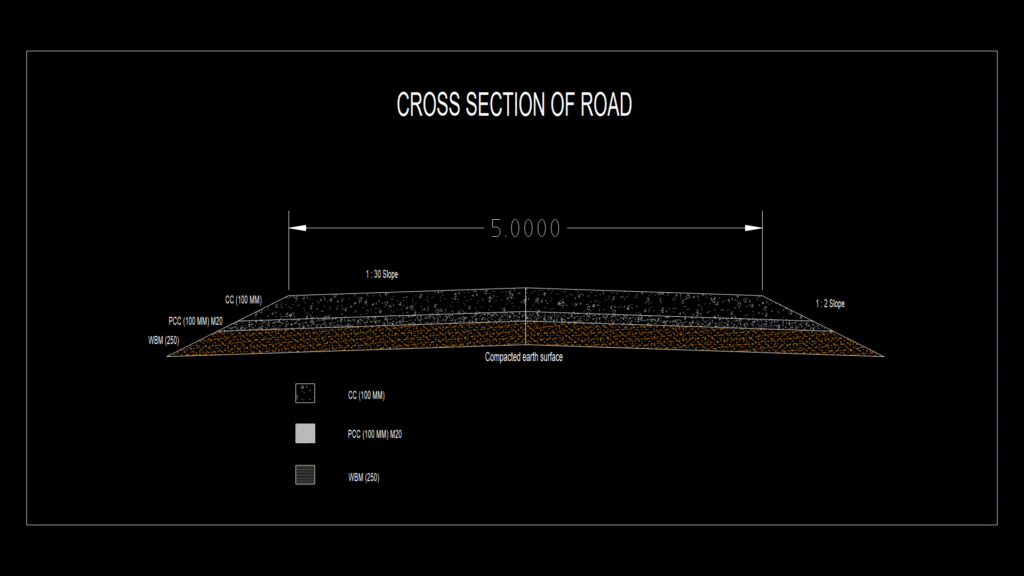

This cross-sectional drawing depicts a standard roadway pavement structure with three distinct construction layers. The road section spans 5 meters in width and features a centrally crowned profile with 1:30 slope for drainage and 1:2 side slopes at the shoulders. The pavement system consists of three technical layers: a top 100 mm layer of PCC (Plain Cement Concrete) M20 grade, an intermediate 100 mm layer of CC (Cement Concrete), and a base 250 mm layer of WBM (Water Bound Macadam). The entire structure rests on compacted earth surface, providing a stable foundation. The crown design facilitates surface water runoff while maintaining driving comfort; the steeper shoulder slopes help contain the structural layers while minimizing the footprint. This typical section follows standard highway engineering practices for secondary or collector roads with moderate traffic loading.
Road Cross Section Drawing with three-layer Pavement Design
