Roofs DWG Block for AutoCAD

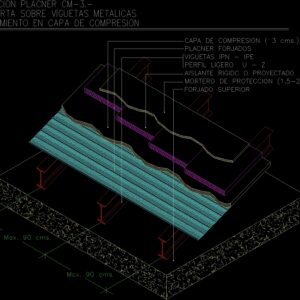

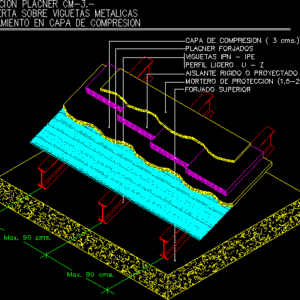

Roof on metallic joists – Isolating in compression layer

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Upper forged, Compression layer, Forged placner, Joists ipn ipe, Light profile, Projected rigid insulation, Protective mortar, Max. Cms., Insulation in compression layer, Cover over metal joists, Solution placner

Raw text data extracted from CAD file:

FORJADO SUPERIOR CAPA DE COMPRESION ( 3 cms.) PLACNER FORJADOS VIGUETAS IPN – IPE PERFIL LIGERO U – Z AISLANTE RIGIDO O PROYECTADO MORTERO DE PROTECCION (1,5-2 cms.) Max. 90 cms. Max. 90 cms. AISLAMIENTO EN CAPA DE COMPRESION CUBIERTA SOBRE VIGUETAS METALICAS SOLUCION PLACNER CM-3.-
