Sacmat Panels DWG Section for AutoCAD

Sacmat Panels DWG Section for AutoCAD

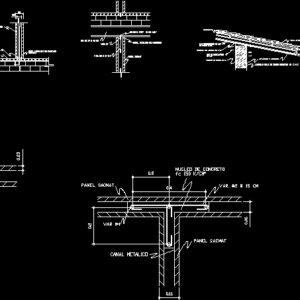

Sacmat panels – Details – Blocks union – Sections

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

concrete core, sacmat panel, var. cm, metal channel, var, sacmat panel, var, var. cm, sacmat panel, metal channel, metal channel, var. cm, sacmat panel, tile apparent, welded mesh, channel sack of lamina, tile apparent, welded mesh, channel sack of lamina, flat head pija, self-tapping pija, flat head, concrete, flattened finish, wood bundle of, steel solera of, wood bundle of, concrete, self-tapping pija, flat head pija, flat head, steel solera of, welded mesh, closing chain, red clay brick lined, flattened finish, hurt, Galvanized metal channel, lower, sacmat panel, var., sacmat panel, var., Galvanized metal channel, var. cm, rivet, ipr of cm, Galvanized metal channel, lower, hurt, clove anchor mm mm, long cm, ipr of cm, sacmat panel

Raw text data extracted from CAD file:

2 fc 150 K/CM NUCLEO DE CONCRETO PANEL SACMAT 0.11 0.06 0.2 0.4 0.2 VAR. #2 @ 15 CM CANAL METALICO VAR #4 PANEL SACMAT VAR #4 VAR #4 VAR. #2 @ 15 CM 0.03 0.2 0.2 0.11 0.06 PANEL SACMAT CANAL METALICO 0.11 0.06 0.2 CANAL METALICO VAR. #2 @ CM PANEL SACMAT TEJA APARENTE MALLA ELECTROSOLDADA 6/6 - 10/10 CANAL SAC 94-3 DE LAMINA #20 (0.91mm) TEJA APARENTE MALLA ELECTROSOLDADA 6/6 - 10/10 CANAL SAC 94-3 DE LAMINA #20 (0.91mm) PIJA DE CABEZA PLANA DE 3/4" PIJA AUTORROSCANTE DE 1/2" DE CABEZA PLANA CONCRETO APLANADO Y ACABADO TAQUETE DE MADERA DE 1" SOLERA DE ACERO DE 1/8" TAQUETE DE MADERA DE 1" CONCRETO PIJA AUTORROSCANTE DE 1/2" PIJA DE CABEZA PLANA DE 3/4" DE CABEZA PLANA SOLERA DE ACERO DE 1/8" MALLA ELECTROSOLDADA 6/6 - 10/10 CADENA DE CERRAMIENTO 2 0 0.95 LADRILLO ROJO DE BARRO RECOSIDO 28 X 14 X 7 LADRILLO ROJO DE BARRO RECOSIDO 28 X 14 X 7 APLANADO Y ACABADO DUELA CANAL METALICO GALVANIZADO INFERIOR PANEL SACMAT 0.06 0.11 VAR. #4 PANEL SACMAT VAR. #4 CANAL METALICO GALVANIZADO VAR. #2 @ 15 CM REMACHE "POP" AM-54 1/2 " IPR DE 6" @ 90 CM CANAL METALICO GALVANIZADO INFERIOR DUELA CLAVO ANCLA 03.7 MM X 42 MM DE LARGO @ 30 CM IPR DE 6" @ 90 CM 0.06 0.11 PANEL SACMAT

Language	N/A
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	adobe, autocad, bausystem, blocks, construction system, covintec, details, DWG, earth lightened, erde beleuchtet, losacero, panels, plywood, section, sections, sperrholz, stahlrahmen, steel framing, système de construction, terre s, union
