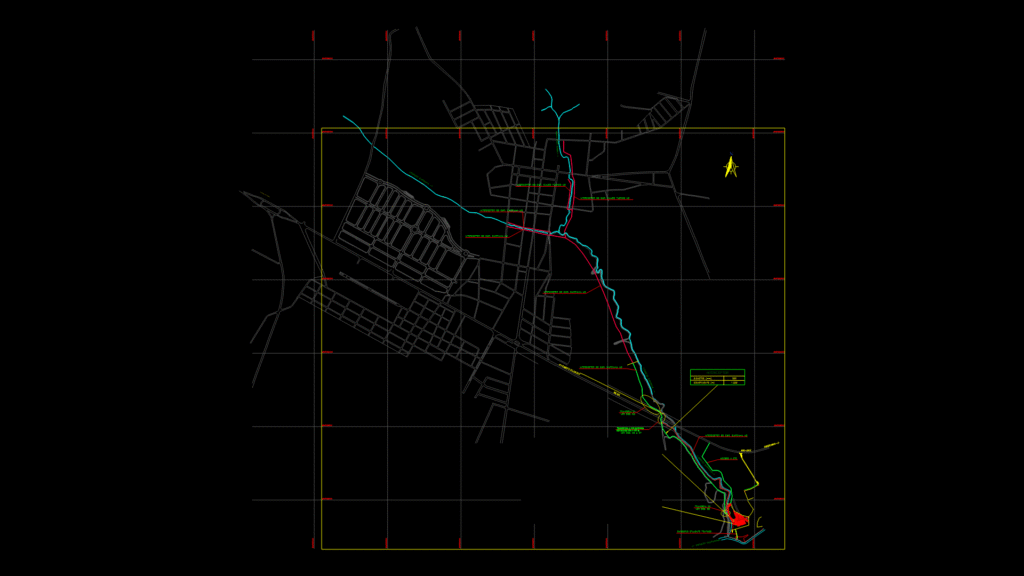

Master layout plan for the Campo Florido sanitary sewage system infrastructure showing interceptor pipelines, wastewater treatment plant (ETE), and pumping station. The drawing depicts a comprehensive network with multiple interceptors along Córrego Barrinha and Córrego Campo Florido waterways, including three critical water crossings. Key infrastructure components include:
Treatment Facilities:
– Wastewater treatment plant (ETE) with UASB reactor, biological percolating filter, and secondary clarifier
– Initial population service: 5,219 inhabitants (8.86 L/s)
– Final population design: 6,440 inhabitants (10.93 L/s)
Collection System:
– Multiple interceptor lines along waterways with 250mm diameter pipes
– Pumping station (EE-F) featuring submersible pumps (1+1 configuration)
– Pump capacity: 17.92 L/s with 5.6m hydraulic head and 11.97cv power
The layout incorporates a dedicated access road to the treatment plant and an effluent discharge pipeline. Coordinates are provided in UTM (Universal Transverse Mercator) using SAD69 datum with a central meridian of 51°W. The drawing serves as the primary reference plan for the entire sewage system implementation.
