Sanitation DWG Section for AutoCAD

Sanitation DWG Section for AutoCAD

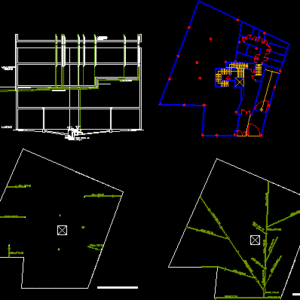

Sanitations in plant and section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Pvc, Pvc, Ferrero lucas, Ferrero lucas, Guide tube, Electric box wardrobe, ventilation, Waterproof, Cast iron cover, stop, March, Rainwater, manifold, Double bilge pump, sanitation, Secondary ventilation, Non-return valve, Ferrero married lucas

Raw text data extracted from CAD file:

d110mm d90mm PVC-2% d110mm PVC-2% d110mm PVC-2% d110mm PVC-2% d110mm PVC 2% d110mm PVC-2% d110mm PVC-2% d125mm PVC-2% d200mm PVC-2% d160mm PVC-2% d110mm PVC 2% d110mm PVC-2% d125mm PVC-2% d110mm PVC-2% d90mm PVC-2% d110mm PVC-2% d160mm PVC-2% FERRERO CASADO, LUCAS 71027042Y d110mm PVC-2% d110mm PVC-2% d90mm PVC-1% d90mm PVC-1% FERRERO CASADO, LUCAS 71027042Y TUBO GUIA ARMARIO CUADRO ELECTRICO VENTILACION ESTANCA TAPA DE FUNDICION 45 PARADA MARCHA 1 MARCHA 2 \W0.64641; aguas pluviales \W0.64641; Ø90mmPVC \W2.71784; COLECTOR doble bomba de achique saneamiento d200mmPVC-2% saneamiento d160mm PVC-2% saneamiento d90mmPVC-2% saneamiento d125mm PVC-2% Ventilación secundaria d110mm VALVULA ANTIRRETORNO FERRERO CASADO LUCAS 710027042Y
