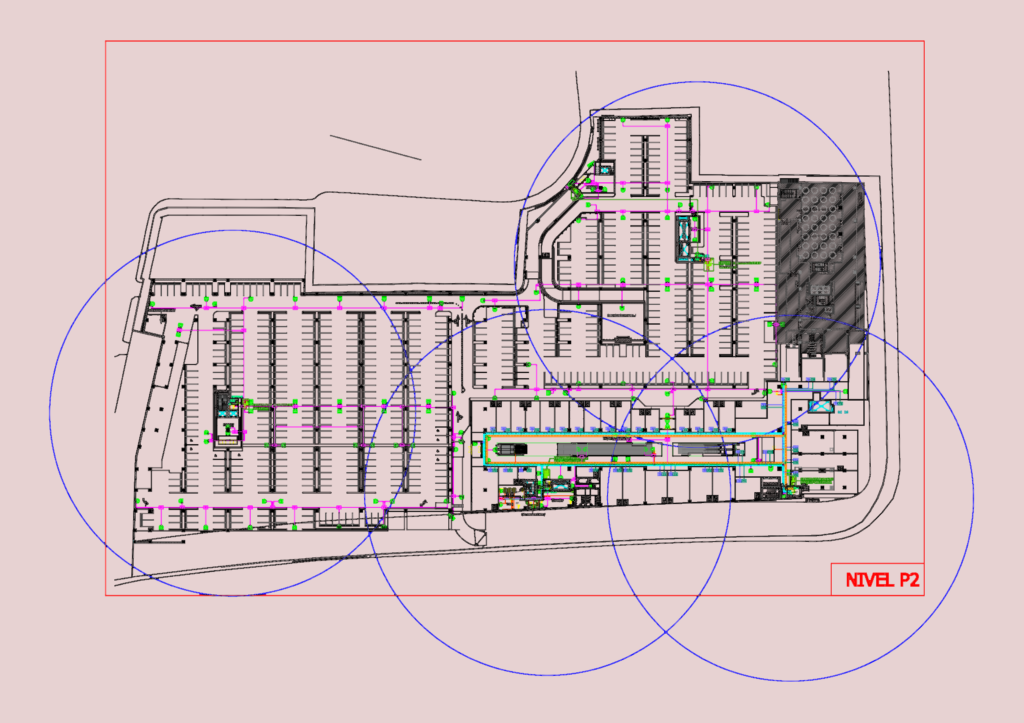

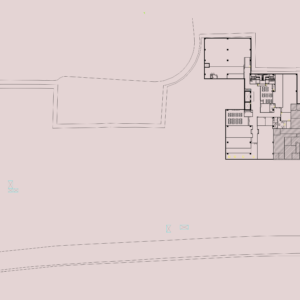

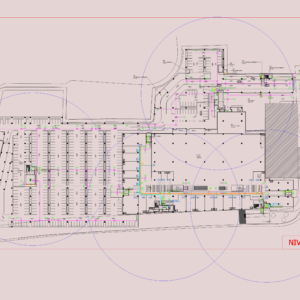

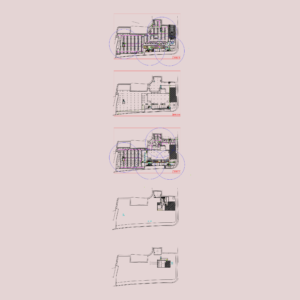

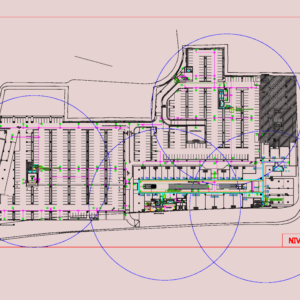

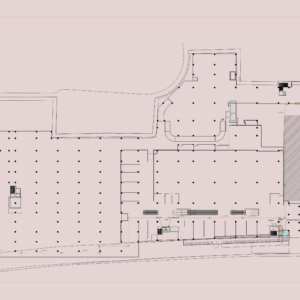

Architectural floor plans and specialized systems layouts for levels P01, P1M and P2 of the Santiago Center development. Technical details include CCTV placement with IP67 2MP dome and bullet cameras, plus biommetric access control system specs. – Infrastructure: 1000m² PTAR, raw/fire water cisterns, pump rooms. – Data: IDF rooms, fiber optic distribution, PVC SDR-26 underground conduits. – Site: ~15,000m² parking, loading areas, retail anchor zones.
Santiago center architectural and security plans
