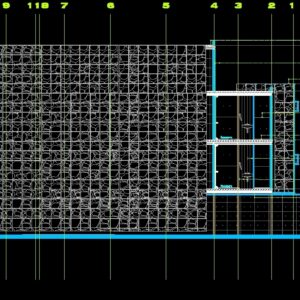

Section By Facade DWG Section for AutoCAD

Section By Facade DWG Section for AutoCAD

Mezzanine floors

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Pre-glazed concrete walls with exposed finish, two holes for handling., Beam section tied with screws the column of epoxy paint red color., Columns with cross section of epoxy colored paint hands, Quality pine wood frames arranged between on pine frame quality each varnished with layers of baked automotive enamel., Precast concrete for deep vent., Canadian cedar veneer on a pine frame of each, Grooved concrete plate for perforations for Tecnsa brand supports, Pink limestone plates of dimensions placed on ptr frame placed with technsa stainless steel brackets., Pre-cast concrete walls with fine polished finish with holes for handling., Slab type romsa steel with compression layer electro welded mesh with insulation every cm. Steel slab plates, bedroom, bedroom, Cut by west facade

Raw text data extracted from CAD file:

6.949 Muros de concreto precolado de dimensiones 0.75x0.50x0.09 m con acabado cimbra expuesta y dos orificios para su manejo. Viga I de seccion 0.15x0.15 amarrada con tornillos a la columna de acero, 1 mano de pintura epoxica color rojo. f`c 4200. Columnas I con seccion transversal de 0.10x0.10m con 2 manos de pintura epoxica color gris.f`c 4200 Molduras de madera de pino 1ra calidad 3"nacional dispuestas a 0.05m entre c/u sobre bastidor de pino 1era calidad a cada 0.70m. Barnizada con 2 capas de esmalte automotivo horneado. Despiece de concreto precolado para ventila de .50x0.60x0.40m de profundidad. Duela machimbrada de 3" Cedro Canadiense sobre bastidor de pino de 2da a cada 060m. Placa de concreto ranurada para baño, con perforaciones para los soportes marca Tecnsa Placas de Piedra caliza rosada nacional(beta blanca) de dimensiones 0.50x0.50x0.05m. colocadas sobre bastidor de PTR 2" y colocadas con soportes de 4" de acero inoxidable marca Tecnsa. Muros de concreto precolado de dimensiones 0.75x0.50x0.09 m con acabado pulido fino con 2 orificios para su manejo. Losa acero Romsa tipo III con capa de compresion 5cm y malla electrosoldada con seguros a cada 80 cm. Placas de losa acero 1.20 x 12 m 1 3 2 +10150 +8050 +7650 +5150 +2160 ±0000 +2650 Recamara 4 a +2670 +4770 +6949 5 6 7 8 11 9 10 12 13 Recamara CORTE POR FACHADA oeste (esc 1:20) +0160 5

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, construction details section, cut construction details, DWG, facade, floors, mezzanine, section
