Section Facade DWG Section for AutoCAD

Section Facade DWG Section for AutoCAD

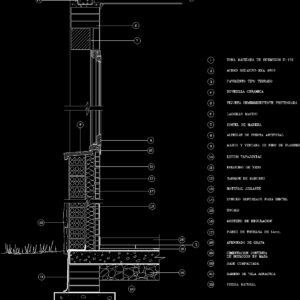

Section facade -Window with winding curtain – Tile roof – Insulation roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Septum, constructive section, natural stone, Asphalt bib, Compacted base, Of concrete in mass, Continuous foundation, Gravel rammer, Mortar of regulation, plinth, Reinforced lintel for lintel, isolating material, Plaster plaster, Flashing list, Frame window pine flanders, Artificial stone masonry, Prestressed semi-resistant beam, Ceramic vase, Terrace floor type, Negative steel real, Solid concrete area, Tochana wall, Wooden lintel, Solid brick

Raw text data extracted from CAD file:

TABIQUE DE MAHONES SECCION CONSTRUCTIVA 22 21 20 19 18 22 21 20 19 18 PIEDRA NATURAL BABERO DE TELA ASFALTICA BASE COMPACTADA DE HORMIGON EN MASA CIMENTACION CONTINUA APISONADO DE GRAVA 17 MORTERO DE REGULACION 16 ZOCALO 15 ZUNCHO REFORZADO PARA DINTEL 14 MATERIAL AISLANTE 13 12 ENLUCIDO DE YESO 11 LISTON TAPAJUNTAS 10 MARCO Y VENTANA DE PINO DE FLANDES 9 ALFEIZAR DE PIEDRA ARTIFICIAL 8 7 6 VIGUETA SEMIRRESISTENTE PRETENSADA 5 4 BOVEDILLA CERAMICA PAVIMENTO TIPO TERRAZO 3 ACERO NEGATIVO REA 4600 2 ZONA MACIZADA DE HORMIGON H-175 1 16 15 14 13 17 12 11 10 9 8 7 6 5 4 3 2 1 PARED DE TOCHANA DE 14cm. DINTEL DE MADERA LADRILLO MACIZO

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, construction details section, curtain, cut construction details, DWG, facade, insulation, roof, section, tile, winding, window
