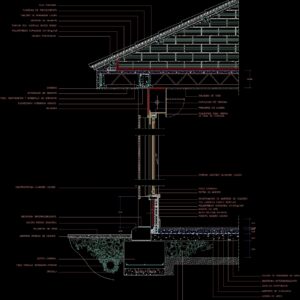

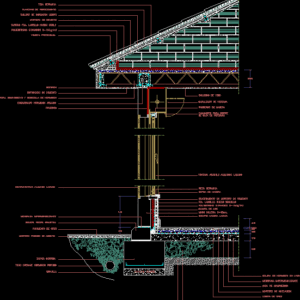

CONSTRUCTIVE DETAIL SECTION FACADEOF HOUSING ;WITH ROOF OF SLANTED SLOPE

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

concrete poor, porous concrete drain pipe, gravel, encachado, compression layer, leveling mortar, stoneware tile, running shoe, porous seat mortar, stoneware pavement, floor stone granite, lacquered aluminum shutter, menbrana waterproofing, firm, concrete screed in mass, menbrana waterproofing, ceramic piece, Wooden shelf, cement mortar lining, fca simple hollow brick, expanded polystyrene, air chamber, wall silleria, lacquered wood skirting, folding window lacquered alumunium, pins for closing, wooden precerco, window capialzado, of blind box, gypsum plaster, polydros, chained reinforced concrete, forj semiciguetas concrete boom, cement plastering, goteron, expanded polystyrene, tabicon fca. double hollow brick, cement mortar, lightweight concrete board, fiber cement sheets, ceramic tile, prestressed joist, singing

Raw text data extracted from CAD file:

HORMIG. POBRE TUBO DRENAJE HORMIGON POROSO GRAVILLA ENCACHADO 0.03 CAPA DE COMPRESION MORTERO DE NIVELACION LOSETA DE GRES ZAPATA CORRIDA MORTERO POROSO DE ASIENTO PAVIMENTO DE GRES SOLERA PIEDRA GRANITICA CONTRAVENTANA ALUMINIO LACADO MENBRANA IMPERMEABILIZANTE FIRME SOLERA DE HORMIGON EN MASA MENBRANA IMPERMEABILIZANTE PIEZA CERAMICA REPISA DE MADERA REVESTIMIENTO DE MORTERO DE CEMENTO FCA. LADRILLO HUECO SENCILLO POLIESTIRENO EXPANDIDO D=15Kg/m3 CAMARA DE AIRE MURO SILLERIA E=18cm. RODAPIE MADERA LACADA VENTANA ABATIBLE ALUMUNIO LACADO PASADORES PARA CIERRE PRECERCO DE MADERA CAPIALZADO DE VENTANA DE CAJA DE PERSIANA ENLUCIDO DE YESO POLIDROS ENCADENADO HORMIGON ARMADO FORJ. SEMIVIGUETAS Y BOBEDILLA DE HORMIGON ENFOSCADO DE CEMENTO GOTERON POLIESTIRENO EXPANDIDO D=15Kg/m3 TABICON FCA. LADRILLO HUECO DOBLE MORTERO DE CEMENTO TABLERO DE HORMIGON LIGERO PLANCHAS DE FIBROCEMENTO TEJA CERAMICA VIGUETA PRETENSADA 0.45 0.10 CANTO 0.10 0.25 0.015 0.12 0.06
