Septic Grave DWG Section for AutoCAD

Septic Grave DWG Section for AutoCAD

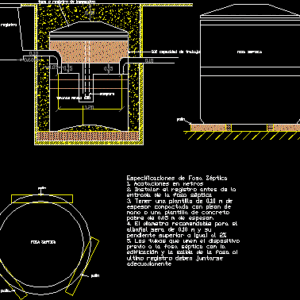

Section and specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Septic tank specifications dimensions in meters install the register before the entrance of the septic tank have a thick compacted stencil with hand pison a poor concrete concrete template of thick. The recommended diameter for the masonry will be of its superior slope equal to the tubes that connect the previous device the septic tank with the building the exit of the pit to the last register must join properly, registry, bulkhead, working capacity, Minimum brace, Inspection log cap, septic tank, Polin, septic tank, Polin

Raw text data extracted from CAD file:

Especificaciones de Fosa Séptica 1. Acotaciones en metros 2. Instalar el registro antes de la entrada de la fosa séptica 3. Tener una plantilla de 0.10 m de espesor compactada con pison de mano o una plantilla de concreto pobre de 0.05 m de espesor. 4. El diametro recomendable para el albañal sera de 0.10 m y su pendiente superior o igual al 2% 5. Los tubos que unen el dispositivo previo a la fosa séptica con la edificación y la salida de la fosa al ultimo registro deben juntarse adecuadamente registro 0.30 0.15 0.15 0.10 0.10 mampara 0.05 0.60 20% capacidad de trabajo tirante minimo 0.90 1.20 tapa o registro de inspeccion FOSA SÉPTICA polin polin FOSA SÉPTICA polin polin polin

Language	Spanish
Drawing Type	Section
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry
Measurement Units
Footprint Area
Building Features
Tags	autocad, DWG, einrichtungen, facilities, gas, gesundheit, grave, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, section, septic, specifications, wasser bestimmung, water
