Septic Grave DWG Section for AutoCAD

Septic Grave DWG Section for AutoCAD

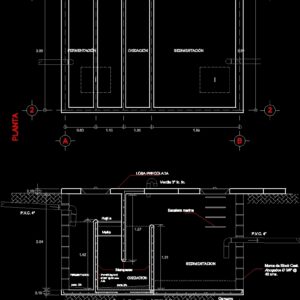

Plant and section septic grave – Detail with technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

sedimentation, fermentation, oxidation, p.v.c., pre-cast slab, ventilates fo. fo., marine ladder, sedimentation, p.v.c., carcamo, concrete slab cms, oxidation, screens, fermentation, pend., rack, mesh, block cast walls. drowned cms., Note: inside the whole pit you will have a polished finish filled in the bottom to give outstanding, pend., cms a.s., elevation, plant

Raw text data extracted from CAD file:

1.85 4.60 \A1;1.31 1.00 0.60 \A1;1.42 \A1;1.37 \A1;0.10 \A1;2.04 \A1;0.10 1.10 4.60 1.85 0.60 1.00 1.10 3.50 1.85 1.00 1.10 0.60 3.50 B 1 2 A 2 B A SEDIMENTACIÓN FERMENTACIÓN OXIDACIÓN A P.V.C. 4" LOSA PRECOLADA Ventila 3" fo. fo. Escalera marina SEDIMENTACION P.V.C. 4" Carcamo Losa de Concreto F'c=150 kg/cm2 d3/8" @ 20 cms OXIDACION Mamparas FERMENTACION pend. 2% Rejilla Malla Muros de Block Cast. Ahogados d 3/8" @ 40 cms. NOTA: Dentro de toda la fosa tendra un acabado pulido y rellenos en el fondo para dar pendientes F'c=150 kg/cm2 pend. 2% d 3/8" @ 20 cms A.S. ELEVACIÓN B 1 PLANTA

Language	Spanish
Drawing Type	Section
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, DETAIL, DWG, einrichtungen, facilities, gas, gesundheit, grave, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, plant, provision, section, septic, specifications, technical, wasser bestimmung, water
