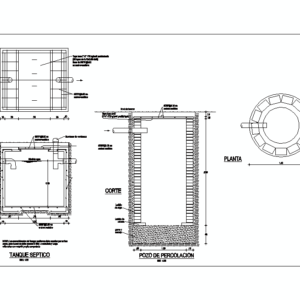

SEPTIC TANK FLOOR FLAT, CUT DETAILS AND SPECIFICATIONS

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

in both ways, Prefabricated slab lids in both directions, plant, cut, in both ways, Of ventilation, in both ways, Prefabricated slab cover, Rope brick, Head, Gravel gravel, septic tank, Percolation well, Esc., Note: the side walls of the septic tank must be enclosed by both, For which each side must be excavated later, Fill them with their own compacted material, Ground level, water level

Raw text data extracted from CAD file:

\A1;.40 \A1;.70 \A1;.40 \A1;1.00 \A1;.15 \A1;1.20 \A1;.10 \A1;.10 \A1;1.30 \A1;.10 \A1;1.40 \A1;.10 \A1;.30 \A1;.70 \A1;.30 \A1;.10 \A1;.10 \A1;1.20 \A1;.10 \A1;1.45 \A1;.10 \A1;.15 \A1;1.00 \A1;.15 \A1;.40 \A1;2.35 \A1;.05 \A1;.10 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 \A1;d3/8"@0.20 en ambos sentidos \A1;Tapa losa C°A° 175 kg/cm2 prefabricado (02 tapas de 0.70x0.65x0.05) fierro de d3/8"@0.20 en ambos sentidos PLANTA CORTE \A1;d3/8"@0.20 en ambos sentidos \A1;d3/8"@0.20 en ambos sentidos \A1;d3/8"@0.20 en ambos sentidos d3/8"@0.25 en ambos sentidos \A1;Sombrero de ventilacion \A1;d3/8"@0.20 en ambos sentidos 5 5 Tapa losa de 2" C°A° 175 kg/cm2 prefabricado Ladrillo de soga \A1;Ladrillo de cabeza grava o cascajo 5 5 5 5 5 5 5 TANQUE SEPTICO POZO DE PERCOLACION ESC. 1/25 ESC. 1/25 NOTA: Los muros laterales del tanque septico se debe encofrar por ambas caras, para lo cual se debe excavar 0.50m. a cada lado y luego rellenarlos con material propio compactado Nivel de terreno Nivel de agua
