Sewer DWG Section for AutoCAD

Sewer DWG Section for AutoCAD

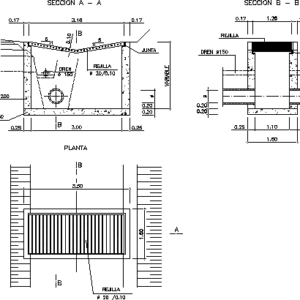

Sewer with details – Measures – Plant – Section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

section, plant, concrete, rack, variable, rack, rack, meeting, Drain, Drain, meeting, section, Type casket, scale

Raw text data extracted from CAD file:

SECCION A - A 3.16 3.00 PLANTA A HORMIGON H-200 HORMIGON H-150 0.25 d 20/0.10 0.17 REJILLA 1 5 0.10 VARIABLE VARIABLE 0.25 REJILLA d 20 /0.10 B 1.60 A 3.50 B 0.25 0.20 d 0.20 0.20 d 1.60 1.10 0.25 0.20 REJILLA JUNTA 0.17 d 150 DREN 5 1 DREN d150 JUNTA 1.26 0.17 0.17 SECCION B - B 0.20 B B ARQUETA TIPO 1 ESCALA 1:40

Language	Spanish
Drawing Type	Section
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, details, DWG, kläranlage, Measures, plant, section, sewer, treatment plant
