Shelter Lodging Hotel, Accommodation 2D DWG Plan for AutoCAD

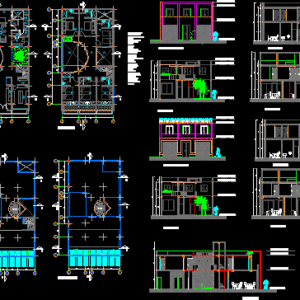

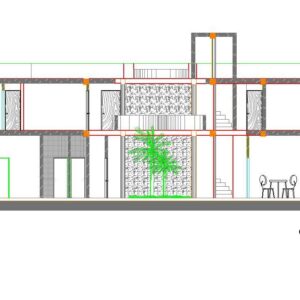

Plan, elevation and cross section view of shelter lodging hotel. Plan has two floor and roof top. First floor has following areas – reception, dinning room, restaurant, craft store, bar, corridor, kitchen, restroom, office, administration area, laundry, dirty clothes, cleaned clothes, pantry, work shop and toilets. Second floor has following areas – 6 bedrooms, corridor, empty garden, balcony and toilets. Total foot print area of the plan is approximately 177 sq meters.
| Language | Spanish |
| Drawing Type | Plan |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood |
| Measurement Units | Metric |
| Footprint Area | 150 - 249 m² (1614.6 - 2680.2 ft²) |
| Building Features | A/C |
| Tags | 2d, accommodation, autocad, DWG, elevation, lodge, lodging, plan, section, shelter |
