Simple Sump DWG Detail for AutoCAD

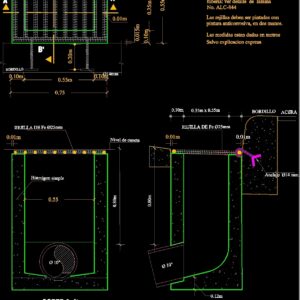

Plant, cut and detail of a simple storm sewer sump

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

curb, Faith grid, Faith grid, cut, sidewalk, Anchor mm., curb, Measurements are given in meters, The grilles should be painted with paint in two hands., For depths less than m. It is necessary to protect the pipe: see sheet detail no., Major drainage areas, note, Level of gutter, Faith grid, Simple concrete, cut, Unless expressly stated

Raw text data extracted from CAD file:

\A1;0.75 \A1;0.55m \A1;0.10m \A1;0.10m \A1;0.10m \A1;0.10m \A1;0.01m \A1;0.015m \A1;0.55m \A1;0.35m \A1;0.20m \A1;0.55 \A1;0.01m 0.025 0.025 0.025 0.025m 0.025 0.025 0.025 m m m m m m 0.05288m 0.025m 0.025m 0.05288m 0.05288m 0.05288m 0.05288m 0.05288m 0.05288m 0.05288m 0.025 0.05288m 0.20m BORDILLO Ø 10″ B 0.35m 0.55m REJILLA DE Fe Ø25mm 0.525mx0.73m d14mm 0.015m 0.01m 0.10m 0.10m 0.10m 0.10m 0.55m 0.75 A’ A B’ 0.01m REJILLA DE Fe Ø25mm 0.01m 0.12m CORTE B-B’ 0.80m Ø 10″ ACERA Anclaje Ø14 mm. BORDILLO 0.35m x 0.55m 0.10m Las medidas estan dadas en metros Las rejillas deben ser pintadas con pintura anticorrosiva, en dos manos. Para profundidades menores de 0.80 m. se requiere proteger la tubería: ver detalle de lamina No. ALC-844 Areas de drenaje mayores a 1Ha. NOTA : 0.01m Nivel de cuneta REJILLA DE Fe Ø25mm 0.01m Hormigon simple CORTE A-A’ Ø 10″ 0.80m 0.55 Salvo explicacion expresa
