Solar Collector DWG with Front and Side Elevations

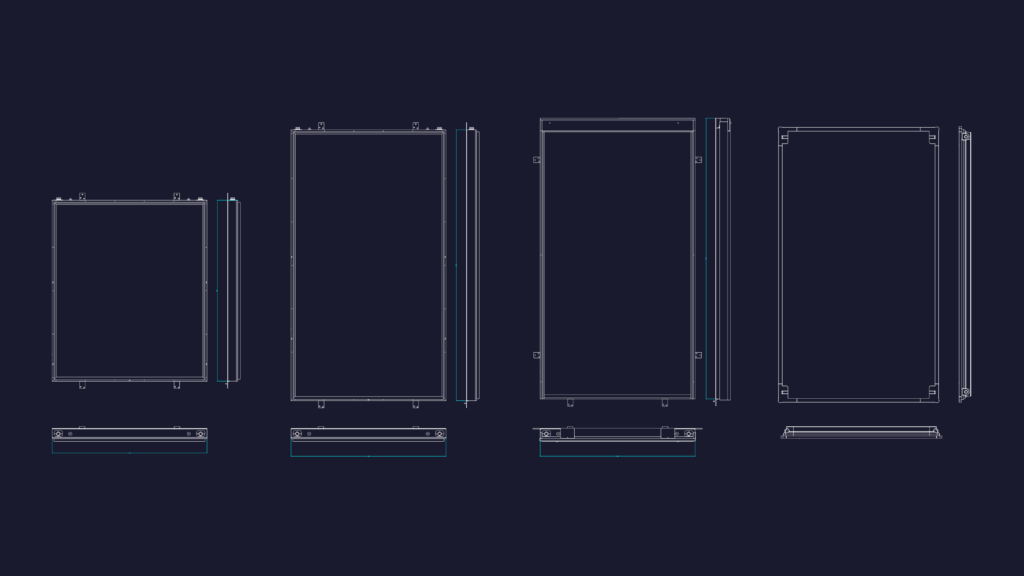

Front and side elevations of four rectangular solar collector panels in a 2D CAD drawing.

Flat plate solar collectors in four different sizes. We’ve included the front elevations, side profiles, and top/bottom views for each unit.

FREE

File Details

File Type
DWG
Type
Detail
Language
N/A
Materials
Aluminum, Glass
Units
Metric
Uploaded by
Free DWG
Downloads
1 downloads
Category
Engineering & Technical, Mechanical, Electrical & Plumbing (MEP)
Published
Jun 26, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

Cad Block DWG elevation hvac mechanical MEP plan view renewable energy rooftop solar collector solar panel thermal energy water heating
