Stair DWG Detail for AutoCAD

Stair DWG Detail for AutoCAD

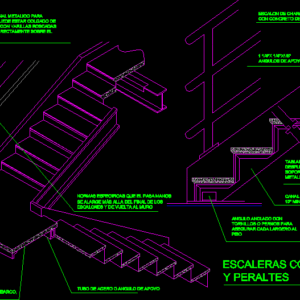

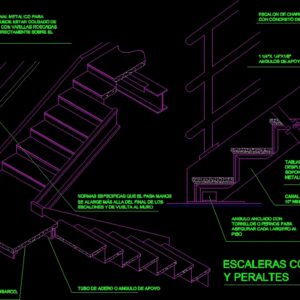

Construction detail complete staircase

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

metal channel support to be hung on the structure with threaded rods supported directly on the wall, specific rules that the hands pass is extended beyond the end of the steps back to the wall, steel tube support angle, steel tray for concrete filling, metal tray step filled with minimum concrete, support angles, metallized sheet metal with planar supported by metal frame, minimum metal rail, angle anchored with bolts bolts to secure each plate to the floor, stairs with footsteps

Raw text data extracted from CAD file:

SOPORTE DE CANAL METALICO PARA DESEMBARCO, PUEDE ESTAR COLGADO DE LA ESTRUCTURA CON VARILLAS ROSCADAS O SOPORTADA DIRECTAMENTE SOBRE EL MURO NORMAS ESPECIFICAS QUE EL PASA MANOS SE ALARGE MÁS ALLA DEL FINAL DE LOS ESCALONES Y DE VUELTA AL MURO TUBO DE ACERO O ANGULO DE APOYO CHAROLA DE ACERO PARA DESEMBARCO, CON RELLENO DE CONCRETO ESCALON DE CHAROLA METALICA LLENA CON CONCRETO DE 2" MINIMO 1 1/4"X 1/4"X1/8" ANGULOS DE APOYO TABLAROCA O METAL DESPLEGADO CON APLANADO SOPORTADOS POR BASTIDOR METALICO CANAL DE LARGUERO METALICO 10" MINIMO ANGULO ANCLADO CON TORNILLOS O PERNOS PARA ASEGURAR CADA LARGERO AL PISO ESCALERAS CON HUELLAS Y PERALTES

Language	Spanish
Drawing Type	Detail
Category	Stairways
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, complete, construction, degrau, DETAIL, DWG, échelle, escada, escalier, étape, ladder, leiter, stair, staircase, stairway, step, stufen, treppe, treppen
