Steel Structure S-shape

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

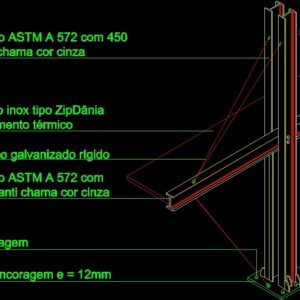

flat roof in stainless steel type double zipdania with thermal coating, tensioner in rigid galvanized steel cable, pillar asphalt steel with anti-flame gray color paint, anchor support plate, anchor bolt

Raw text data extracted from CAD file:

telha plana em aço inox tipo ZipDânia dupla com revestimento térmico tensor em cabo aço galvanizado rígido pilar prefil I 24" Aço ASTM A 572 com 450 MPA, pintura anti chama cor cinza pilar prefil I 24" Aço ASTM A 572 com 450 MPA, pintura anti chama cor cinza placa de apoio e ancoragem e = 12mm parafuso de ancoragem

Language	Portuguese
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Steel
