Switch Place DWG Block for AutoCAD

Switch Place DWG Block for AutoCAD

Place of switch

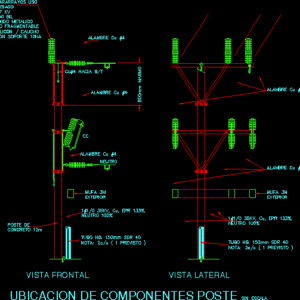

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

maximum, Hg tube. Sdr note: expected, Of components post scale, frontal, side, Hg tube. Sdr note: expected, neutral, Neutral epr, Mufa exterior, Concrete pole, Mufa exterior, Neutral epr, Cu wire, Cu wire, toward, Lightning rod heavy duty kv bil metal oxide non-fragmenting silicon rubber with support

Raw text data extracted from CAD file:

\A1;800mm MAXIMO TUBO HG. 150mm SDR 40 NOTA: 2c/u ( 1 PREVISTO ) \fSansSerif|b0|i0|c2|p2;UBICACION DE COMPONENTES POSTE \Fromans.shx;\H0.05;\C4;SIN ESCALA \fSansSerif|b0|i0|c2|p2;VISTA FRONTAL \fSansSerif|b0|i0|c2|p2;VISTA LATERAL TUBO HG. 150mm SDR 40 NOTA: 2c/u ( 1 PREVISTO ) 5 NEUTRO 1#1/0 35KV, Cu, EPR 133%, NEUTRO 100% MUFA 3M EXTERIOR POSTE DE CONCRETO 12m MUFA 3M EXTERIOR 1#1/0 35KV, Cu, EPR 133%, NEUTRO 100% ALAMBRE Cu #4 ALAMBRE Cu #4 ALAMBRE Cu #4 CC ALAMBRE Cu #4 ALAMBRE Cu #4 Cu#4 HACIA B/T PARARRAYOS USO PESADO 27 KV 150 BIL OXIDO METALICO NO FRAGMENTABLE SILICON / CAUCHO CON SOPORTE 10KA

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete
