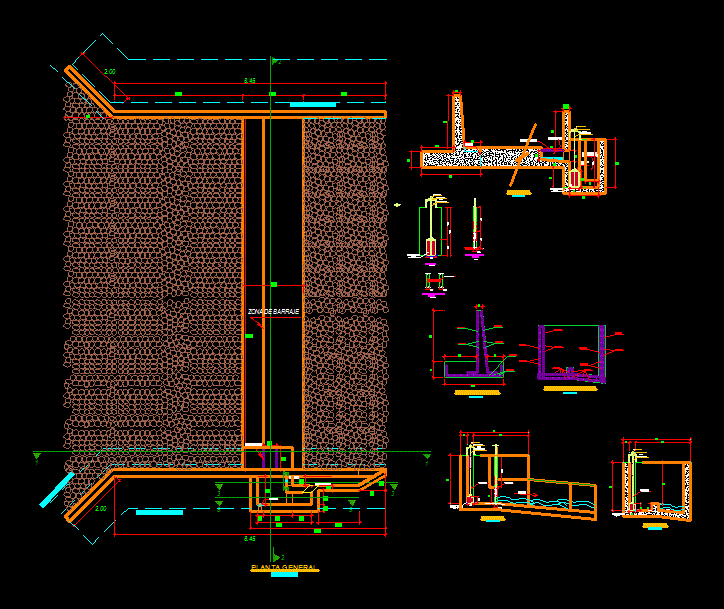

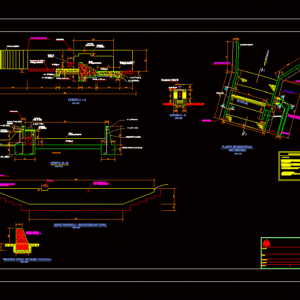

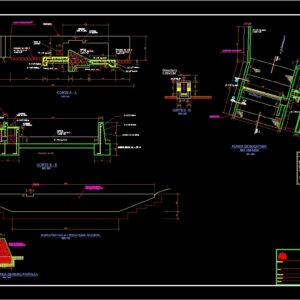

DESIGN IN SIERRA an intake LIBERTE – NAS YOUR COURT AND LIFTS

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Eua, Barrage, Water stop joint, Water stop gasket bk, Flow direction, Enrocado, gate, Mobile phone mt., gate, Gate clean channel, Maneuvers, Nail projection, Cyclopean concrete, concrete, Cyclopean concrete, concrete, C.o p.g., Barrage, cut, Esc., channel, gate, Maneuvers, Cm., C.o p.g., Esc., cut, gate, Technical specifications, concrete, Concrete will be used pg, Cement type ms, Simple concrete, Ms type, Concrete will be used, Cement type ms, Barrage walls, Entrance slab exit in barrage, Enriched, The input output of the, Slab of the barrage, Bocatoma plant, Esc., cut, Esc., Cast of, C.o p.g., Cast of, Water stop gasket bk, gate, Gate clean channel, Of catchment, Maneuvers, Barrage, Indicated, January, draft:, Sheet number, mayor:, reviewed:, flat:, region:, scale:, date:, hamlet:, district:, province:, Location:, Elaborated:, Mt., Of hill, Typical section of screen wall, Esc., Natural wall screen s, Esc., Rio ushaida, Soles cm., Cm., C.o p.g., Of concrete

Raw text data extracted from CAD file:

E.A.U.V 42° 5.00 0.30 0.65 0.30 0.60 0.30 1.80 2.30 0.50 0.30 1.50 0.30 6.40 0.80 0.30 1.60 0.80 1.50 0.30 0.30 0.20 1.80 1.00 7.00 0.30 3.00 0.10 1.10 0.50 0.60 0.40 0.10 0.40 5.90 4.96 7.76 8.72 1.00 6.40 0.25 0.45 0.10 0.30 1.10 1.50 0.30 0.30 2.30 0.30 0.45 0.30 0.10 1.81 2.67 1.00 0.20 0.20 0.30 0.30 1.00 11.37 1.80 0.50 1.50 0.20 0.30 3.20 0.20 0.70 0.20 0.30 0.10 0.10 0.25 0.20 0.40 0.60 0.80 0.40 1.00 0.30 2.50 1.01 2.50 1.00 1.00 2.00 25.00 15.00 1.70 1.10 BARRAJE 5 5 JUNTA WATER STOP 6" JUNTA WATER STOP 6\fAvantGarde Bk BT|b1|i0|c0|p34;" DIRECCION DE FLUJO ENROCADO ENROCADO COMPUERTA 5 \A1;Barraje movil de madera 1. 1/2"x8" x 1.50 mt. 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 COMPUERTA COMPUERTA CANAL DE LIMPIA \W5.23810; \A1;PLATAFORMA \W5.23810; \A1;DE MANIOBRAS Proyeccion de uña CONCRETO CICLOPEO 1:10 + 30% P.G CONCRETO F'c=175 KG/CM2 CONCRETO CICLOPEO 1:10 + 30% P.G CONCRETO F'c=175 KG/CM2 Cº 140 kg/cm2 +30% P.G. Barraje Cº 175 kg/cm2 CORTE B - B ESC. 1/25 5 5 Canal COMPUERTA \W5.23810; \A1;PLATAFORMA \W5.23810; \A1;DE MANIOBRAS 5 5 5 5 5 5 \A1;fe Ø 1/2" @ 0.20 cm. \A1;fe Ø 3/8" @ 0.20 cm. \A1;fe Ø 3/8" @ 0.20 cm. \A1;fe Ø 3/8" @ 0.20 cm. Cº 175 kg/cm2 +30% P.G. Cº 175 kg/cm2 +30% P.G. Cº 175 kg/cm2 Cº 175kg/cm2 4 5 5 5 5 5 ESC. 1/25 CORTE D - D 5 5 Compùerta 0.60x0.60 5 ø3/8"@0.20 ESPECIFICACIONES TECNICAS A.- CONCRETO - SE USARA CONCRETO F'C=140KG/CM2 + 30% PG CEMENTO TIPO MS - EN SOLADOS SE USARA CONCRETO SIMPLE F'C=100KG/CM2,CEMENTO TIPO MS - SE USARA CONCRETO F'C=175KG/CM2 CEMENTO TIPO MS BARRAJE Y MUROS DE ENCAUZAMIENTO LOSA DE ENTRADA Y SALIDA EN BARRAJE B.- ENRROCADO O 0.20 m - SE USARA A LA SALIDA Y ENTRADA DE LA LOSA DEL BARRAJE PLANTA DE BOCATOMA ESC. 1/50 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 CORTE A - A ESC. 1/25 5 Cº 175 kg/cm2 Enrocado de 0.20 Ø Cº 175 kg/cm2 +30% P.G. Enrocado de 0.20 Ø 5 5 5 5 5 JUNTA WATER STOP 6\fAvantGarde Bk BT|b1|i0|c0|p34;" COMPUERTA COMPUERTA CANAL DE LIMPIA \A1;VENTANA DE CAPTACION \W5.23810; \A1;PLATAFORMA \W5.23810; \A1;DE MANIOBRAS Barraje Cº 175 kg/cm2 5 5 5 5 5 5 5 5 5 5 INDICADA ENERO - 2013 Proyecto: Lamina Nº : Alcalde: Revisado: Plano: Región: Escala: Fecha: Caserio: Distrito: Provincia: Ubicación: P E R Ú R E P Ú B L I C A D E L Elaborado: 5 5 \A1;Rebose 5 \A1;Empotramiento de muro minimo 1.00 mt. 5 \A1;Talud de Cerro. 5 5 5 5 SECCION TIPICA DE MURO PANTALLA ESC. 1/50 MURO PANTALLA - BOCATOMA NATURAL ESC. 1/50 5 5 RIO USHAIDA Solado e=10 cm. Solado e=10 cm. \A1;fe Ø 1/2" @ 0.20 cm. \A1;fe Ø 3/8" @ 0.20 cm. \A1;fe Ø 1/2" @ 0.20 cm. \A1;fe Ø 3/8" @ 0.20 cm. Cº 175 kg/cm2 +30% P.G. Cº 175 kg/cm2 +30% P.G. Cº 140 kg/cm2 +30% P.G. \A1;Muro de Concreto 175 kg/cm2+30% P.G \A1;Muro de Concreto 175 kg/cm2+30% P.G 5
