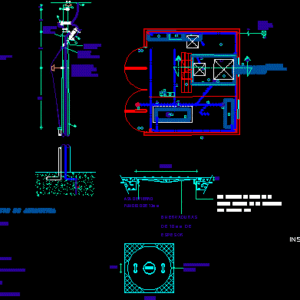

Transformer DWG Detail for AutoCAD
Details of the connection of electric light to the processor
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
electrical installation, Terminal type, Aluminum wire tie, Bayonet copperweld, Stirrup connector, Fusible link, Weather-type terminal, Cable no., Concrete pole, cross-piece, Uc clamp, Apartment house, Fuse cutout, pin, insulator, display, Bowtie type, Mooring, The minimum radius, outdoor, Inside the post, Ground by, Downspout, Earth metal, Screen connection, lime., Earth, Downspout, Times its diameter, Cable is from, Thick wall, Conduit pipe, minimum, Of curvature of the, Detail of connection pole, For measurement, Of land, registry, registry, On bench, plant, Mm, ribbing, thickness, Iron cap, molten, C.f.e., Fused, Iron handle, Metal hoop of cm, With mortar, Cast iron in its perimeter, The height of the blades of respective npt. To the center of the same the whole installation must be secured through a wire of earth a barbell of to calibrate to use simple splices, With capacity to agree, The preparation for the pumping system will have its, The main board through a photocontrol, The lighting system will be controlled from, All cable used will be copper lined, Of the anti-flame type, Pipe not specified will be mm., Thermomagnetic switch on the main board, Material use piping steel conduit enamelled wall register similar junction boxes galvanized similar register interchangeable devices similar register safety switch similar records board.
Raw text data extracted from CAD file:
| Language | Spanish |
| Drawing Type | Detail |
| Category | Water Sewage & Electricity Infrastructure |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | Aluminum, Concrete, Steel |
| Measurement Units | |
| Footprint Area | |
| Building Features | Car Parking Lot |
| Tags | alta tensão, autocad, beleuchtung, connection, DETAIL, details, détails électriques, detalhes elétrica, DWG, electric, electrical, electrical details, elektrische details, haute tension, high tension, hochspannung, iluminação, kläranlage, l'éclairage, la tour, light, lighting, rush, torre, tower, transformer, treatment plant, turm |
