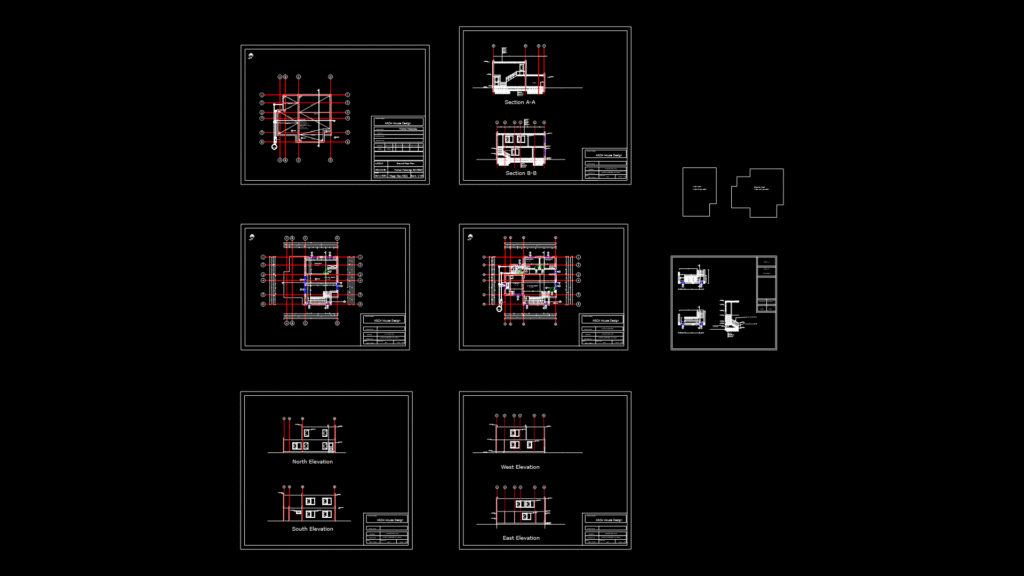

This comprehensive architectural drawing set features detailed plans for a two-story residential villa with a focus on spatial functionality. This ground floor and first floor plans utilize a grid-based layout (A-D by 1-6) with clearly demarcated structural elements including 30×30 cm manholes and various wall types (W1-W4). The kitchen incorporates standard appliances (stove, fridge) while bathrooms feature typical fixtures. Multiple window configurations (ranging from 100×150 mm to 200×150 mm) provide natural lighting. The dwelling includes an 18×17/30 staircase connecting both levels; elevations reveal a balanced façade with fenestration on all sides. Floor heights are specified at +0.30, +3.20, and +6.40 meters from grade (±0.00). The design employs a rational, rectilinear approach with practical room proportions; however, the absence of load-bearing beam details suggests this may require further structural development before construction.
Two-Story Residential Villa Floor Plans with Four Elevation Views
