Vault DWG Detail for AutoCAD

Vault DWG Detail for AutoCAD

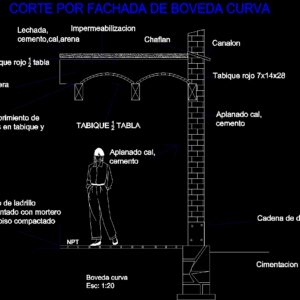

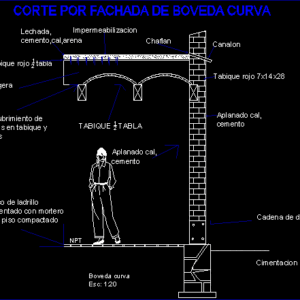

Court facade. indicating materials and details of the vault wedge

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

waterproofing, curve curve vault:, npt, Cut by curve curved facade, mnmdcckckdkd, waterproofing, gutter, red partition, flattened cement, red table, chamfer, light earth, table, coating of barnis in partition beams, flattened cement, brick floor seated with mortar in compacted floor, stone foundation, Shift chain

Raw text data extracted from CAD file:

Impermeabilizacion Boveda curva Esc: 1:20 NPT CORTE POR FACHADA DE BOVEDA CURVA mnmdcckckdkd Impermeabilizacion Canalon Tabique rojo 7x14x28 Aplanado cal, cemento \A1;Tabique rojo \S1/2; tabla Lechada, cemento,cal,arena Chaflan Tierra ligera \A1;TABIQUE \S1/2; TABLA Recubrimiento de barnis en tabique y vigas Aplanado cal, cemento piso de ladrillo asentado con mortero en piso compactado Cimentacion de piedra Cadena de desplante

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, court, cover, dach, DETAIL, details, DWG, facade, hangar, indicating, lagerschuppen, materials, roof, shed, structure, terrasse, toit, vault
