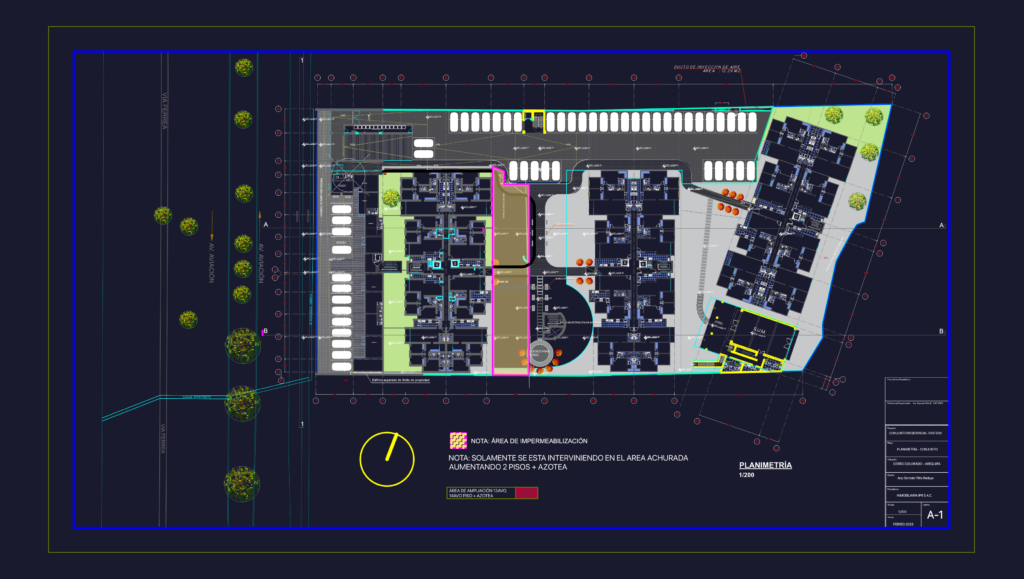

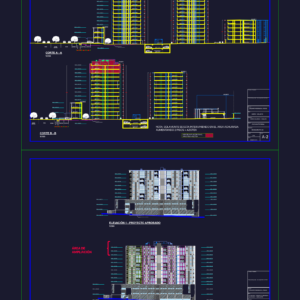

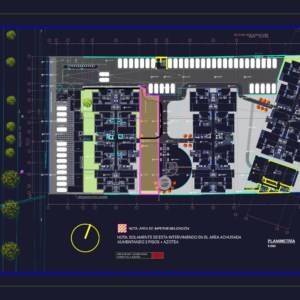

Site plan for the VIVE 500 residential complex in Cerro Colorado, Arequipa. Includes the general master layout with 39 parking stalls, commercial units, and social areas like the SUM and playground. I’ve also included sections A-A and B-B showing the building heights and the proposed expansion for floors 13, 14, and the rooftop. you’ll find the elevation drawings comparing the original approved design with the new floors. It’s drawn at 1/200 scale in metric units. Planimetría completa, cortes y elevaciones de la ampliación del proyecto VIVE 500.
VIVE 500 Residential Complex Master Plan Sections and Elevations
