Technical Overview

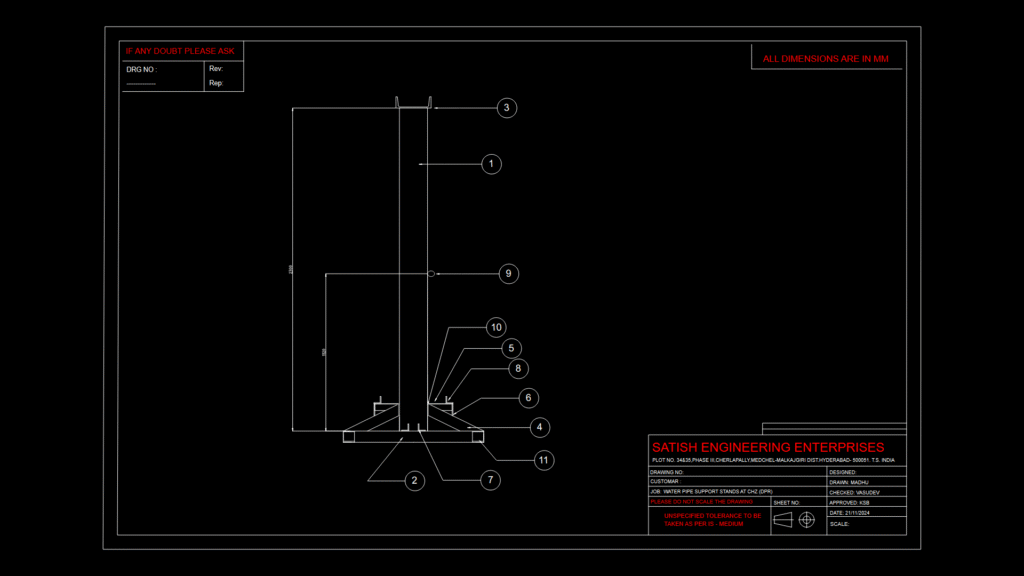

Detailed engineering drawing of a water pipe support stand for CHZ (DPR) installation. This drawing shows a pedestal-type support structure with numbered components (1-11) indicating assembly parts and connection points. The support features a vertical column mounted on a triangular base plate with reinforcement gussets for stability. Key Components: – Vertical support column with mounting, essentially, provisions – Triangular base plate foundation – Reinforcement gussets (items 5, 6, 8) – Multiple connection points for pipe attachment – Structural stabilizers at positions 4, 7, and 11 The drawing follows medium tolerance standards per IS specifications, with all dimensions provided in millimeters. The design prioritizes stability for supporting water piping systems in industrial applications, with particular attention to the load-bearing capacity at the connection points. The pedestal configuration allows for elevation of water pipes above ground level, providing maintenance access while ensuring proper flow characteristics.
