Water Plane DWG Block for AutoCAD

Water Plane DWG Block for AutoCAD

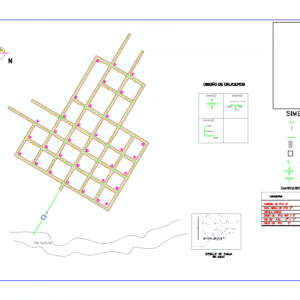

Plano drinking water distribution for locality. Symbology.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Fernando ferrer delgado, Quantities of work pvc pipe blind cap of pvc valve check elbow of pvc. Pvc tee Pvc cross, Acatlán river, Elbow of pvc., Symbology, water treatment plant, Pvc cross, storage tank, Pvc pipe, Blind lid, check valve, amounts of work, Concept unit quantity, Pvc pipe, Blind cap of pvc, Valve check, Elbow of pvc., Pvc tee, Pza, Scale ditch detail, cruise, Pvc, cruise, Cruise ship design, Pvc, Pvc tee, Pvc cross, Pza

Raw text data extracted from CAD file:

FERNANDO FERRER DELGADO '98 N \H1.143x; CANTIDADES DE OBRA \H0.875x; TUBERÍA DE PVC 2" TAPA CIEGA DE PVC 2" VÁVULA CHECK CODO DE PVC. 90° X 2" TEE DE PVC. 2" X 2" CRUZ DE PVC. 2" 1 2 2 2 84.1 104.8 93.3 88.6 81.2 93.3 104.8 93.3 104.8 84.0 429.4 691.4 1,166.5 902.6 698.0 429.4 594.4 206.1 81.2 88.6 93.3 104.8 272.8 81.2 88.6 93.3 104.8 84.1 271.8 81.2 88.6 93.3 104.8 84.1 99.3 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 3 1 2 3 2 2 3 2 2 2 RÍO ACATLÁN 2 3 N CODO DE PVC. 90° X 2" SIMBOLOGIA PLANTA POTABILIZADORA CRUZ DE PVC. 2" TANQUE DE ALMACENAMIENTO TUBERIA DE PVC DE 2" TAPA CIEGA DE 2" VÁLVULA CHECK CANTIDADES DE OBRA CONCEPTO UNIDAD CANTIDAD TUBERÍA DE PVC 2" TAPA CIEGA DE PVC 2" VÁVULA CHECK CODO DE PVC. 90° X 2" TEE DE PVC. 2" X 2" m pza pza pza pza 6800 34 1 4 27 DETALLE DE ZANJA \H0.75x;SIN ESCALA 2 1 CRUCERO CRUCERO PVC 2 " PVC 2 " PVC 90° x 2 " 3 CRUCERO DISEÑO DE CRUCEROS PVC 2 " PVC 2 " PVC 2 " TEE DE PVC. 2" X 2" TEE DE PVC. 2" X 2" CRUZ DE PVC. 2" pza 2

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, distribution, drinking, DWG, fornecimento de água, kläranlage, l'approvisionnement en eau, locality, plane, plano, supply, symbology, treatment plant, wasserversorgung, water
