Wc DWG Section for AutoCAD

Wc DWG Section for AutoCAD

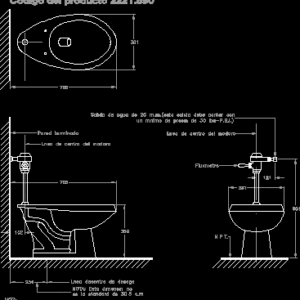

WC – Plant – View – Section – Enclosed measures

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Odorless wood, Product code, Toilet bowl, Finished, Note: this dimension is not the c.m. standard., Decentr drain line, Outlet must have a minimum of, Toilet center line, The dimensions shown for the location of accessories are a suggestion, Accessories are not included with the must be ordered separately., note:

Raw text data extracted from CAD file:

\A1;768 \A1;254 \A1;768 \A1;381 \A1;102 \A1;651 \A1;381 \A1;121 \A1;359 \A1; Inodoro Madera Código del producto 2221.590 \A1; 381 768 102 254 768 \A1;Línea de centro del inodoro \A1;Pared terminada NOTA: Esta dimensión no es la standard de 30.5 c.m. Línea decentro de desagüe \A1;N.P.T. 651 381 121 \A1;Fluxómetro Salida de agua de 25 m.m.(esta salida debe contar con un mínimo de presión de 30 lbs-P.S.I.) Línea de centro del inodoro Las dimensiones mostradas para la ubicación de accesorios son una sugerencia No se incluyen los accesorios con la pieza, deben ser ordenada por separado. NOTA: 359 1000/150xp

Language	Spanish
Drawing Type	Section
Category	Bathroom, Plumbing & Pipe Fittings
Additional Screenshots
File Type	dwg
Materials	Wood
