Well Of Pluvial Waters DWG Block for AutoCAD

Well Of Pluvial Waters DWG Block for AutoCAD

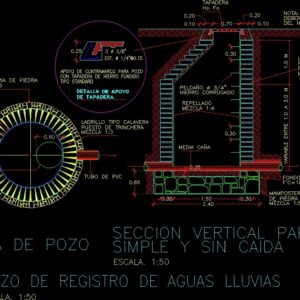

Manhole – Pluvial waters

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Stone masonry, Projection of, Well plant, mixture, scale., Vertical section for well, Rainwater logging well, scale., Simple without fall, Pvc tube, Half reed, Counter-bearing support for well, its T., With cast iron cover, mixture, Skull brick, Trench post, Support detail, Of cover., Standard type, mixture, Corrugated iron, step, Variable between, Concrete bottom, masonry, of stone, mixture, Brick glue, mixture, Ho ho, front, Trench post, Skull brick, Note: the first step, Of the cover level, Should be placed, front, Repellent

Raw text data extracted from CAD file:

\A1;0.25 \A1;R 0.75 \A1;0.30 \A1;0.30 \A1;2.40 \A1;0.30 \A1;0.60 \A1;0.25 \A1;0.65 \A1;1.50 \A1;0.30 \A1;0.20 \A1;0.10 \A1;0.30 \A1;0.20 \A1;0.70 \A1;0.10 1.0 M -135.6037764489736 MAMPOSTERIA DE PIEDRA -135.6037764489736 PROYECCION DE PLANTA DE POZO -135.6037764489736 MEZCLA 1:5 ESCALA. 1:50 SECCION VERTICAL PARA POZO POZO DE REGISTRO DE AGUAS LLUVIAS ESCALA. 1:50 ESCALA. 1:50 SIMPLE Y SIN CAIDA -135.6037764489736 -135.6037764489736 -135.6037764489736 -135.6037764489736 TUBO DE PVC -135.6037764489736 -135.6037764489736 -135.6037764489736 -135.6037764489736 MEDIA CAÑA APOYO DE CONTRAMARCO PARA POZO EST. d 1/4"@0.15 CON TAPADERA DE HIERRO FUNDIDO MEZCLA 1:3 LADRILLO TIPO CALAVERA PUESTO DE TRINCHERA DETALLE DE APOYO DE TAPADERA. TIPO STANDARD MEZCLA 1:4 HIERRO CORRUGADO PELDAÑO d 3/4" VARIABLE ENTRE 1.0 A 3.0 M FONDO DE CONCRETO F'C=180 KG/CM2 MAMPOSTERIA DE PIEDRA MEZCLA 1:5 PEGAMENTO DE LADRILLO MEZCLA 1:3 -135.6037764489736 3 d 3/8" -135.6037764489736 -135.6037764489736 -135.6037764489736 Ho Fo -135.6037764489736 TAPADERA -135.6037764489736 PUESTO DE TRINCHERA LADRILLO TIPO CALAVERA NOTA: EL PRIMER PELDAÑO DEL NIVEL DE TAPADERA DEBERA SER COLOCADO A 0.40M TAPADERA REPELLADO

Language	Spanish
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, DWG, kläranlage, manhole, pluvial, treatment plant, waters
