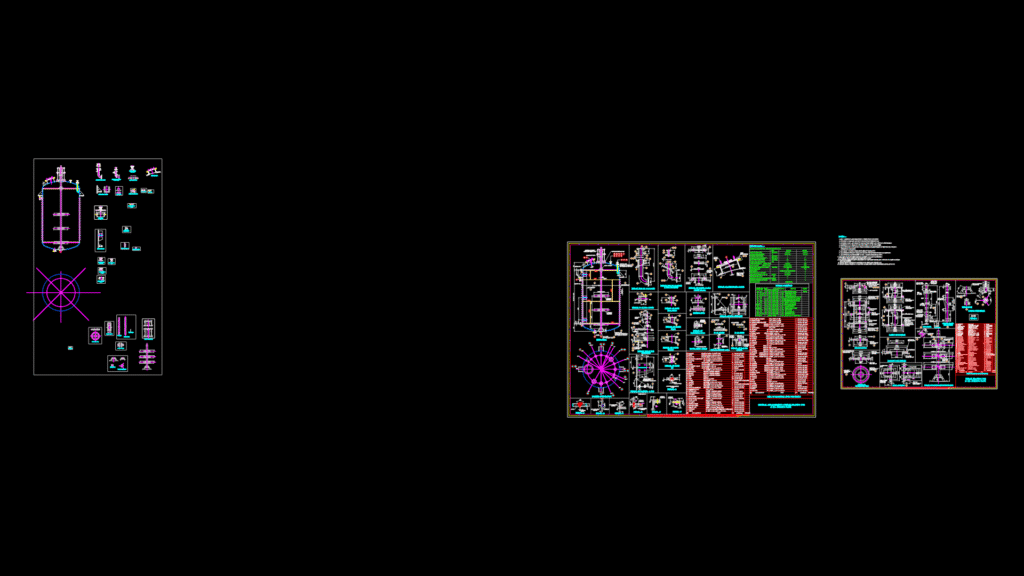

This comprehensive engineering drawing depicts a 15KL vertical pressure vessel fabricated from SS316L with integrated mechanical agitation system. This vessel features a 2600mm ID cylindrical shell with 12mm wall thickness, 10% torispherical dish ends, and stands 3750mm in working height. Designed to ASME Section VIII Division 1 (2021), the vessel operates at 6.0 kg/cm²g working pressure with design conditions of -15°C to 150°C. The drawing details numerous nozzle connections including manhole (500NB), inlet/outlet connections, temperature/pressure instrumentation ports, and sight glass assemblies. Notable components include a PBT (Pitched Blade Turbine) agitator with SS316L construction, mechanical seal assembly, and half-pipe limpet coil for thermal regulation. The vessel incorporates four internal baffles (10mm thick x 250mm width) to improve mixing efficiency. Connection flanges are predominantly 150# SORF standard with cold insulation provisions (50mm). Proper material selection addresses corrosion concerns while ensuring compatibility with process media; all internal components feature 180 grit matt finish with external surfaces pickled and passivated.
15KL SS316L Reactor Storage Tank Detail Drawing with Agitator System
