Structural Steel Layout for Industrial Booth with Connection Details

Name: Structural Steel Layout for Industrial Booth with Connection Details
Brand: Designs CAD
SKU: 855022
Availability: InStock

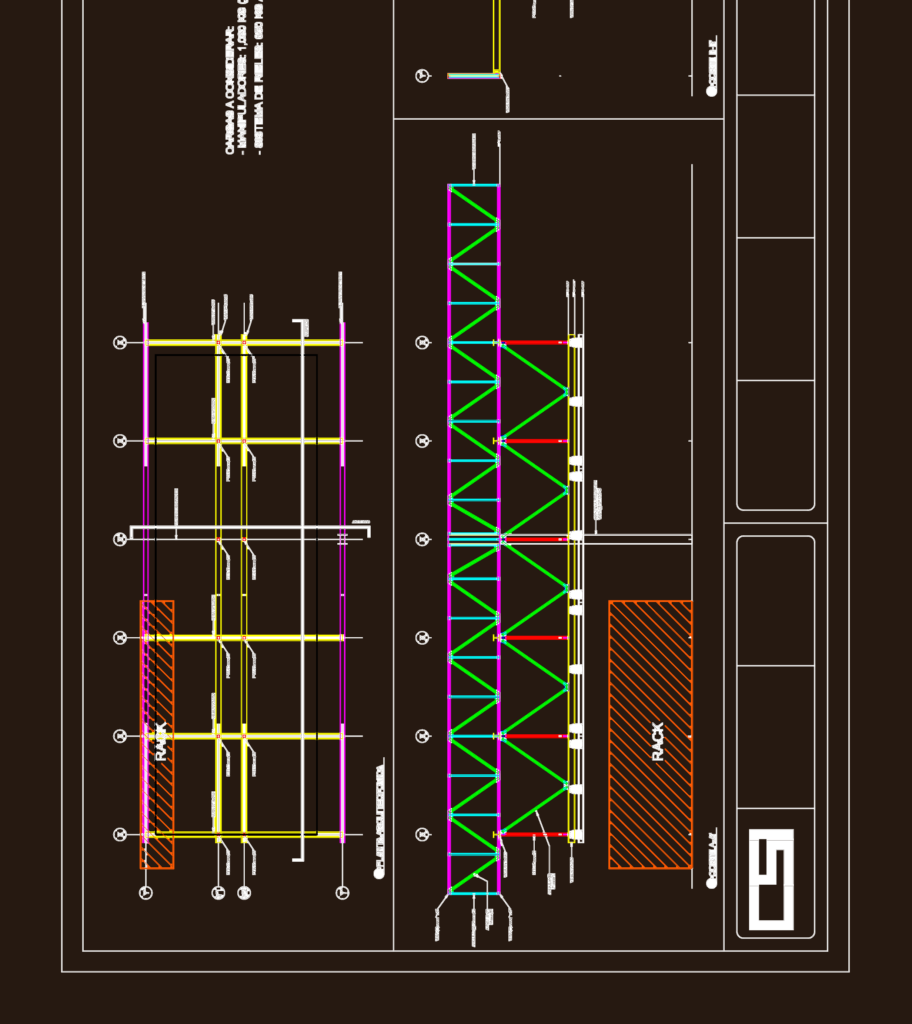

Structural drawing of an industrial enclosure showing beam layouts, diagonal bracing, and steel connection details.

structural plans for an industrial enclosure incl. beam layouts, elevations & connection details. has specs for A572 Gr.50 steel plus loading for manipulators/rails and sections for various IPR beams like W14X34 & W8x13. Estructura cabina bote.

FREE

File Details

File Type: DWG
Type: Full Project
Language: Spanish
Materials: Steel
Units: Metric
Area: 10 – 49 m² (107.6 – 527.4 ft²)
Uploaded by: CAD Corner
Category: Commercial, Industrial
Published: Jun 17, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

A572 steel beam layout booth design connection details DWG industrial enclosure IPR beam Mexicali steel detailing structural elevation structural steel
