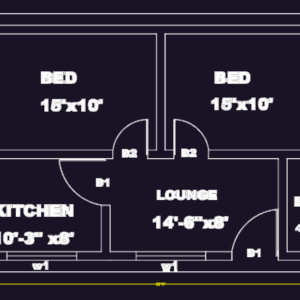

Residential floor plan for a 2 BHK unit with a 34′-3″ x 22′-3″ footprint. Layout covers two 15’x10′ bedrooms, kitchen & lounge with standard door (D1-D3) and window (w1, V1) schedules. Wall section detail included: 10′-0″ clear height, 6″ thk. slab and lintel, and 2′-6″ wide concrete footing with plinth level at 1′-6″ above G.L.
Small 2-Bedroom Residential House Floor Plan and Wall Section
